CAME GGT40AGS - Correct the booms vertical position

Page 17 - Manual FA01383-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

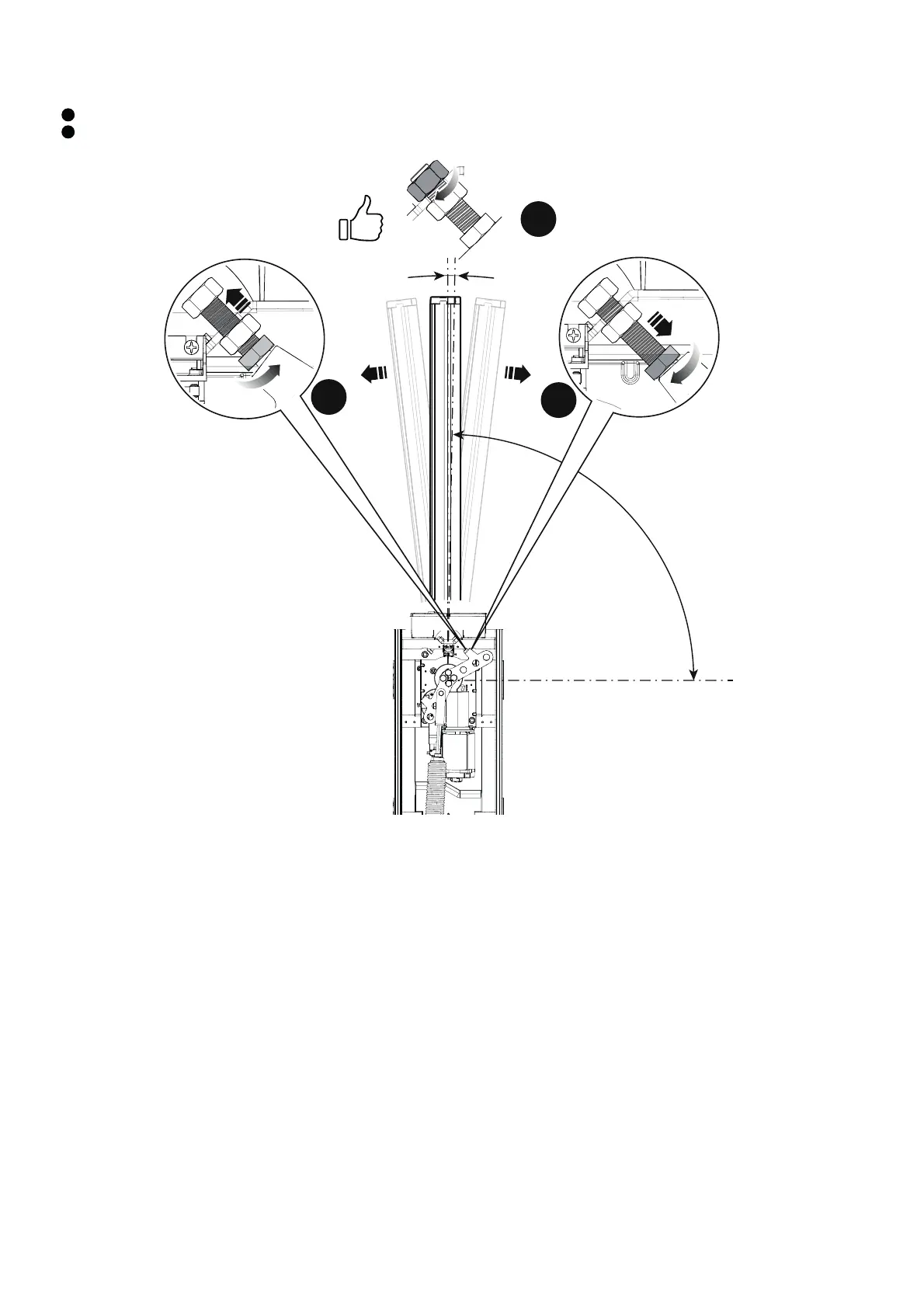

Correct the boom’s vertical position
Release the gearmotor.
Open the inspection hatch.
1
Turn the mechanical stop until you reach the desired boom position.
2
Fasten the mechanical stop with a locknut.
Lock the gearmotor
+
_
~1°
~89°
1
1
2
