CAME KIT AGT V + LITHOS User Manual

–
+
AL
B
M1
CL.RES
M/S
CL.RES
XDV/304
CL.RES CL.RES
M/S MASTER SLAVEM/S
Fam. Rossi
󱫀
󱫂
󱫄
󱯐󱯎 󱯒
Page 3 - Manual FA01429-EN - 07/2020 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

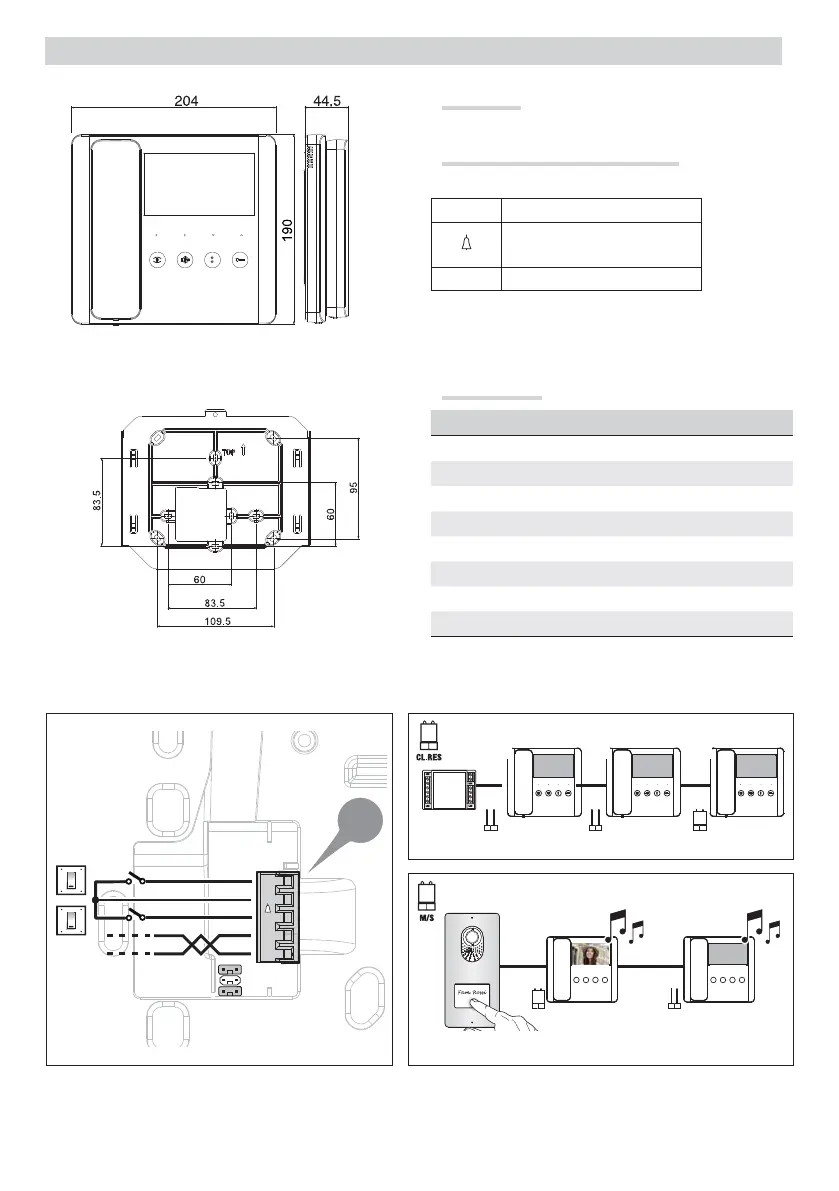

AGT V
Description
Internal video receiver.
Function of terminals and jumpers
Terminal board M1󱫀
B
BUS-line input
–
+
Landing call
AL
Alarm input
󱫂Closing resistance (CL.RES)
󱫄Master/slave selector (M/S)
Technical data
Type AGT V
Power supply from BUS line (VDC) 15 to 20
Maximum consumption (mA) 175
Consumption in stand-by mode (mA) <1
Single LED consumption (mA) 1
Operating temperature (°C) +5 to +40
IP Rating IP 30
Video standard PAL/NTSC
LCD TFT display (inches) 5

CAME KIT AGT V + LITHOS Specifications

General

Brand	CAME
Model	KIT AGT V + LITHOS
Category	Intercom System
Language	English
