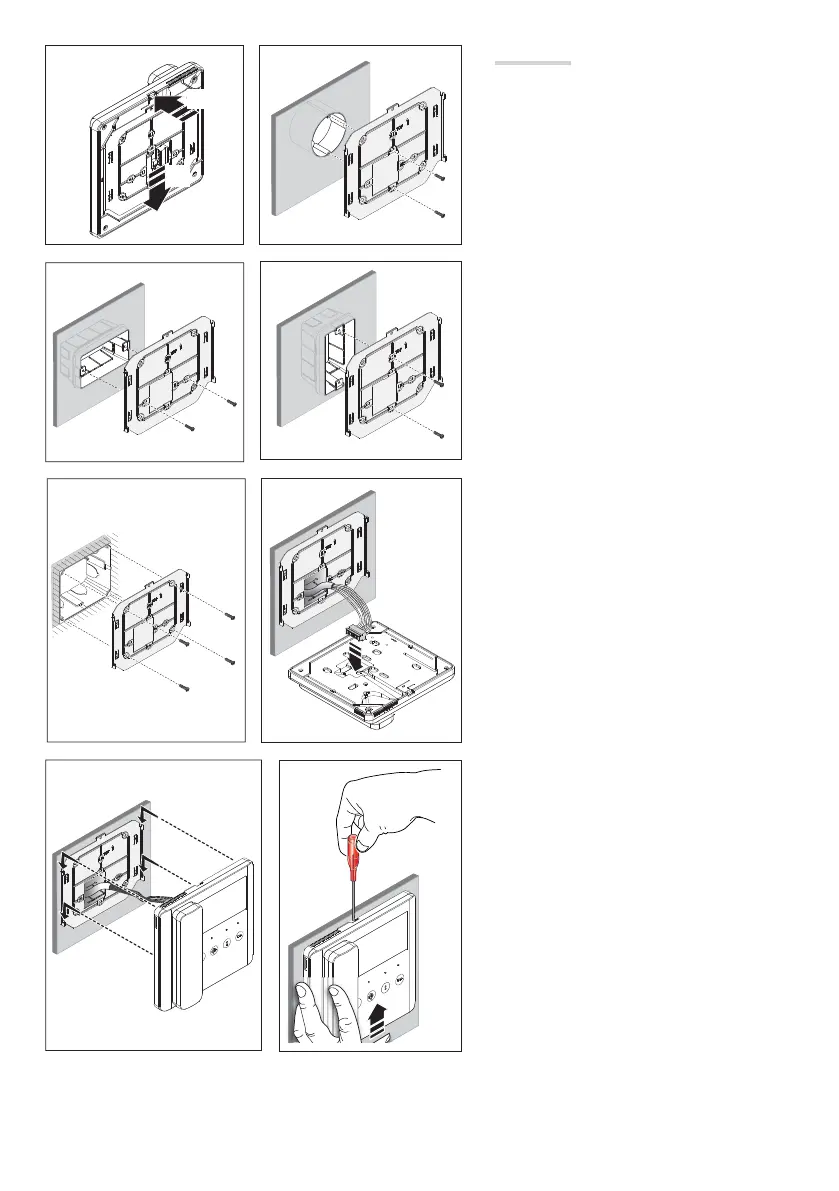

Installation
• Unhook the device from the metal support by press-
ing the plastic tab and sliding the device smoothly o
the support .
• Fix the wall support to the round Ø 60 mm recessed
box , to the rectangular box 503 , or to the
Ophera (PHI) recessed box , with the “TOP” arrow
pointing upwards.
• Avoid overtightening the screws.
• Use screws and anchors to make the support more
stable.
• The box must be installed at a suitable height for the
user.
• Once the connections have been made, attach the
video terminal to the metal support .
• To unfasten the unit from the metal support, press the
plastic tab and lift the terminal .
