CAME KIT AGT V + LITHOS User Manual

43,5
45
7,5
57
70
106
A
M2M1
+–
󱫀

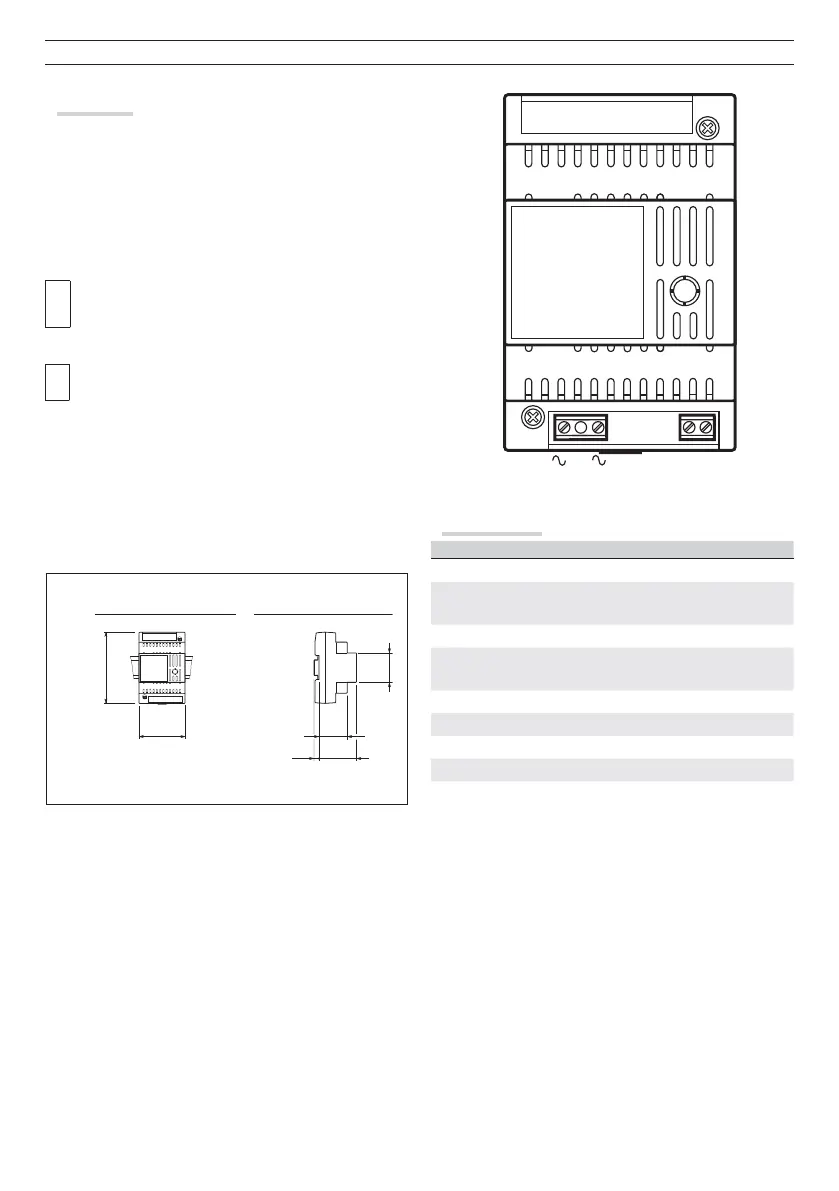

Page 7 - Manual FA01429-EN - 07/2020 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
VAS/101
Technical data
T
yp
e VAS-101
Power supply 230 VAC 50-60 Hz
Max. absorbed current
(mA AC)
200
Dissipated power 10 W max
Rated power 18 VDC 1 A-0.5 A 1’/3’
Size 4 DIN
Storage temperature -25°C + 70°C
Operating temperature 0°C +35°C
IP rating IP 30
Installation
The power supply must always be installed horizontally.
• The device can be installed on DIN rails (EN 50022) on a suit-
able switchboard.
• See fi gure 󱫀 for dimensions.
NOTE. Ensure there is correct ventilation if the power supply is
installed in a metal case.
Terminal board M1
~
Network
~
Terminal board M2
–
+
Power supply 18 V DC (*)
(*) The device is electronically protected against
overloads and short circuits.
