Level the bracket
Anchoring plate
Front bracket

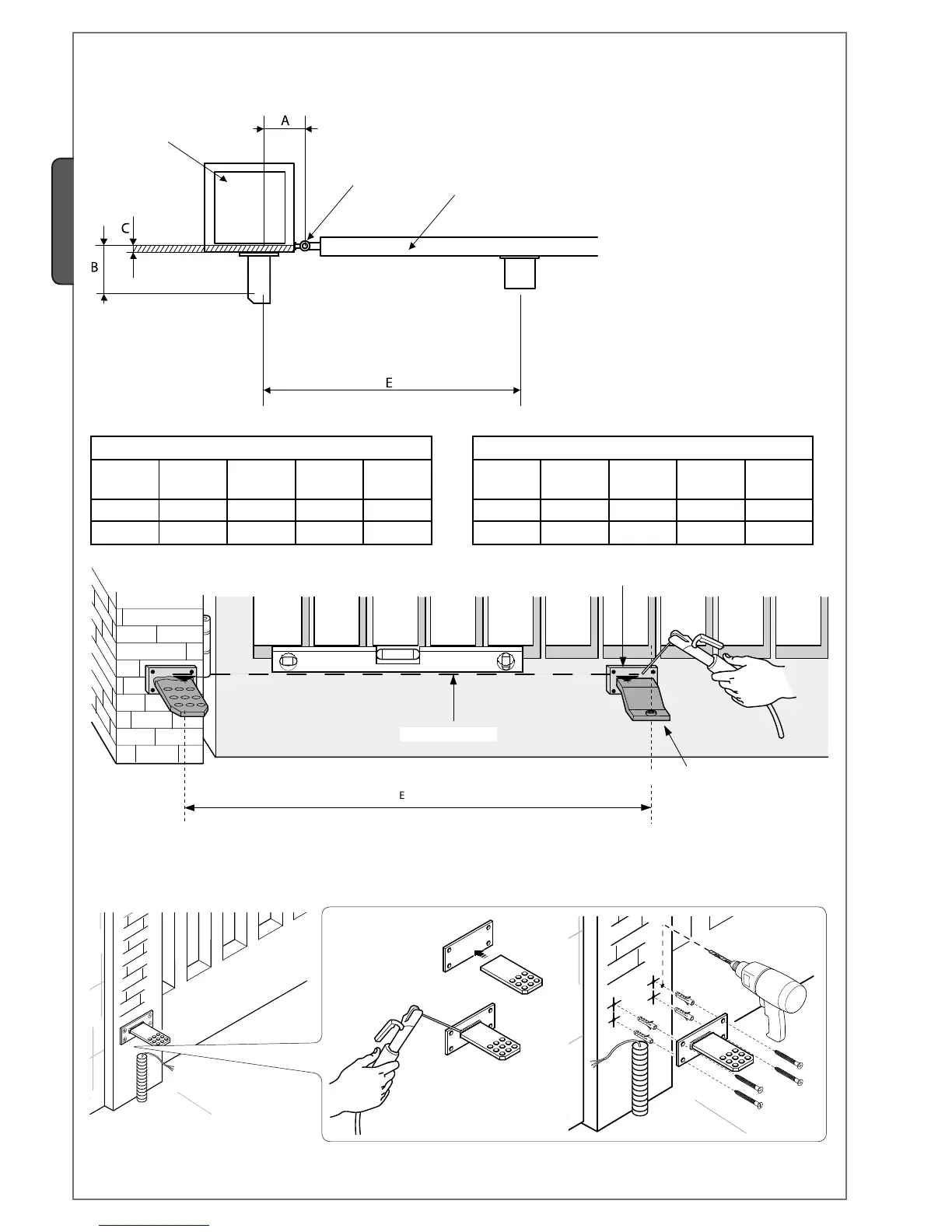

Warning: after establishing the best point to which you will secure the gate bracket, secure the bracket to the pillar and make sure the
quotas shown in the table below are met.
Gate leaves up to 3 m (KR3)
Opening
A
mm
B
mm
C max
mm
E
mm
90° 130 130 60 910
120° 130 110 50 910
Gate leaf up to 5 m (KR5)
Opening
A
mm
B
mm
C max
mm
E
mm
90° 200 200 120 1310
130° 200 140 70 1310
Pillar
Hinge
Gate leaf closed position
Assemble and weld the two parts of the pillar bracket. Secure the bracket to the point you have chosen with proper plugs and screws
or - if the pillar is made of metal - weld it on.
