4.0 03/2009
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

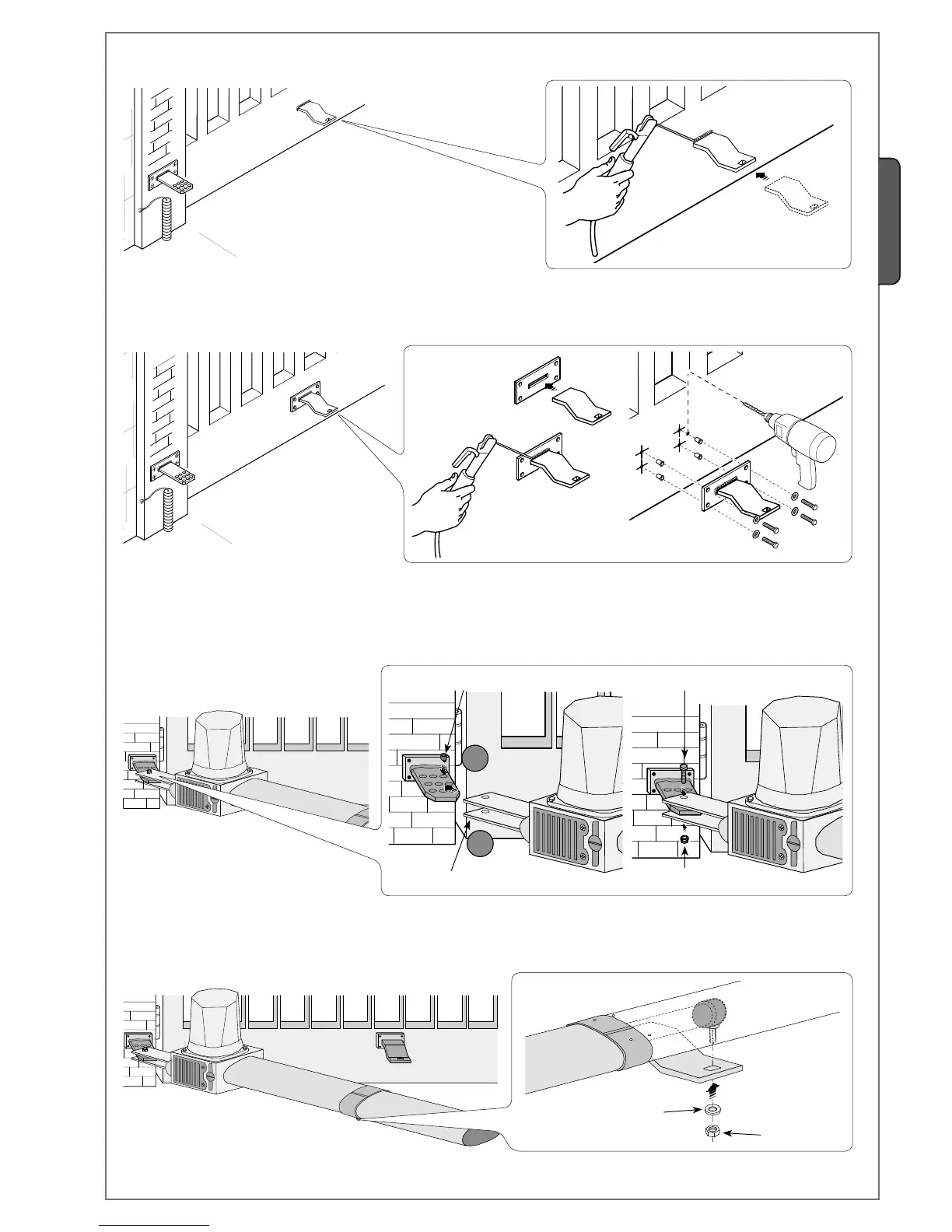

Weld the gate bracket to the gate leaf making sure the quotas shown in the table are met.
Note: on non-metal gate leaves assemble and weld the two parts of the bracket and secure them with proper screws.
Tail joint
Screw M8 x 35
Insert the bushing (lubricated) into the pillar bracket’s hole. The bracket has holes that allow the opening angle to be changed. Secure
the tail joint to the bracket. Secure the tail joint to the bracket.
Bushing
Nut UNI 7474 M8
Insert the bushing onto the main lug as shown in the drawing.
Nut M12
Washer ø12
