CAME RBM84-HW - RBM84 connection <-> PC30 <-> Personal Computer

(/% # "
PC30
RBM 84
RBM84 - Hardware and connections
12
Page
12
12 - Manual code:
FA00189M04
FA00189M04 ver.
1
10/2015 © CAME s.p.a. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.a.
RS232 serial port
Port
COM
1.5 m cable
for RS232 serial ports
supplied with connectors
12V AC power supply
for 230V A.C. power supply - 50÷60Hz
800 mA current draw
working temperature between -20 and +50°C

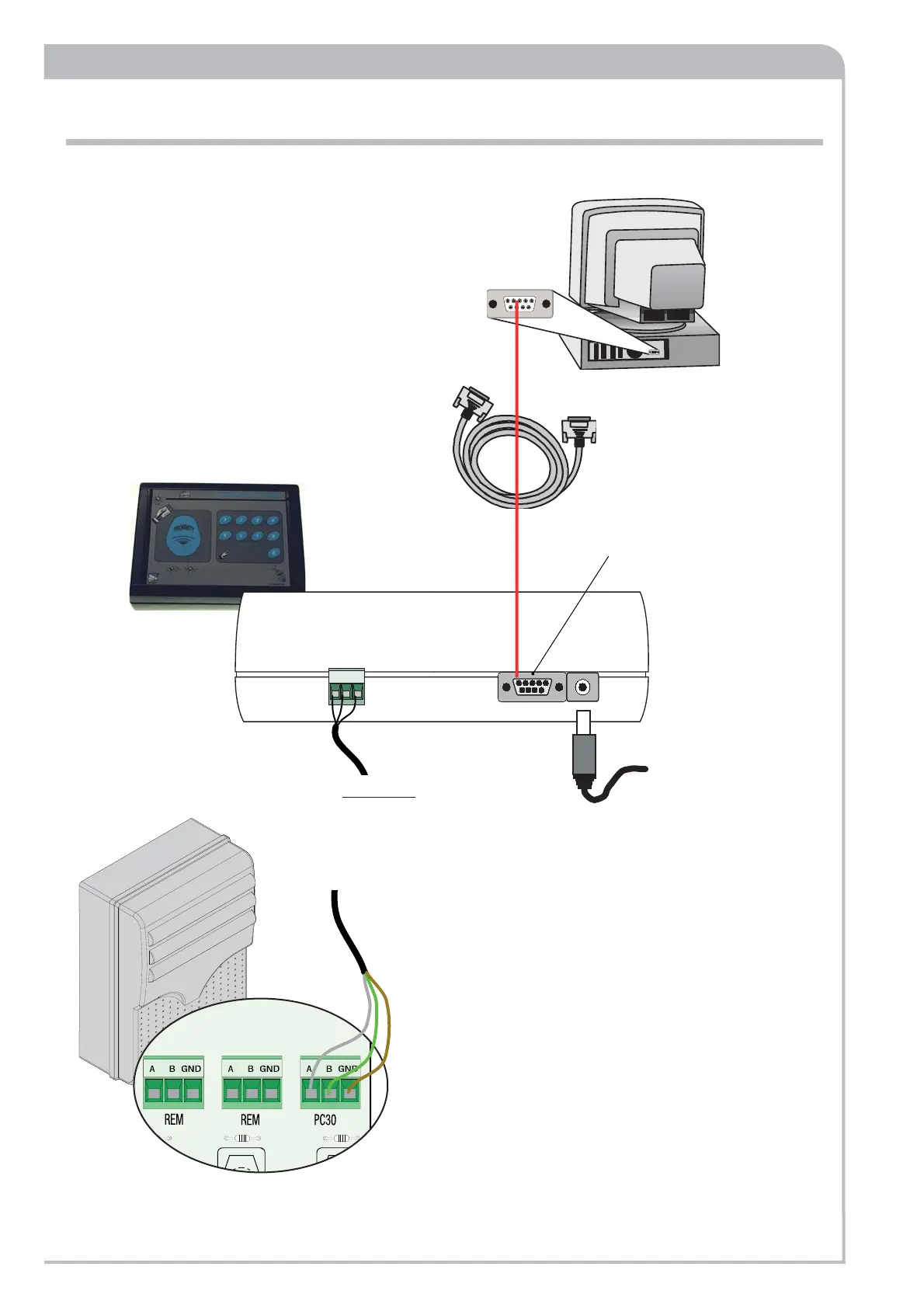

RBM84 connection <----> PC30 <----> Personal Computer
Cable NOT INCLUDED
recommended type:
unshielded
multipair cable
(CAT 5 - U/UTP - AWG24)
see Annex A
