CAME RBM84-HW - Dip switch RBM84 - Function selection; Annex A - How to connect the U;UTP cable

OFF
ON
OFF
ON
OFF
ON
RBM84 - Hardware and connections
27
Page
27
27 -
Manual code:
FA00189M04
FA00189M04 ver.
1
10/2015
© CAME s.p.a. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.a.
Lock-out user with zero credit function
Dip 2 ON.................A user with 0 credit may enter: must purchase additional credit to exit.
Users with negative credit are denied access.
N.B. Dip 1,3,4 and 5 are not used, leave OFF.
Dip 2 OFF.................A user with 0 credit, denied access.

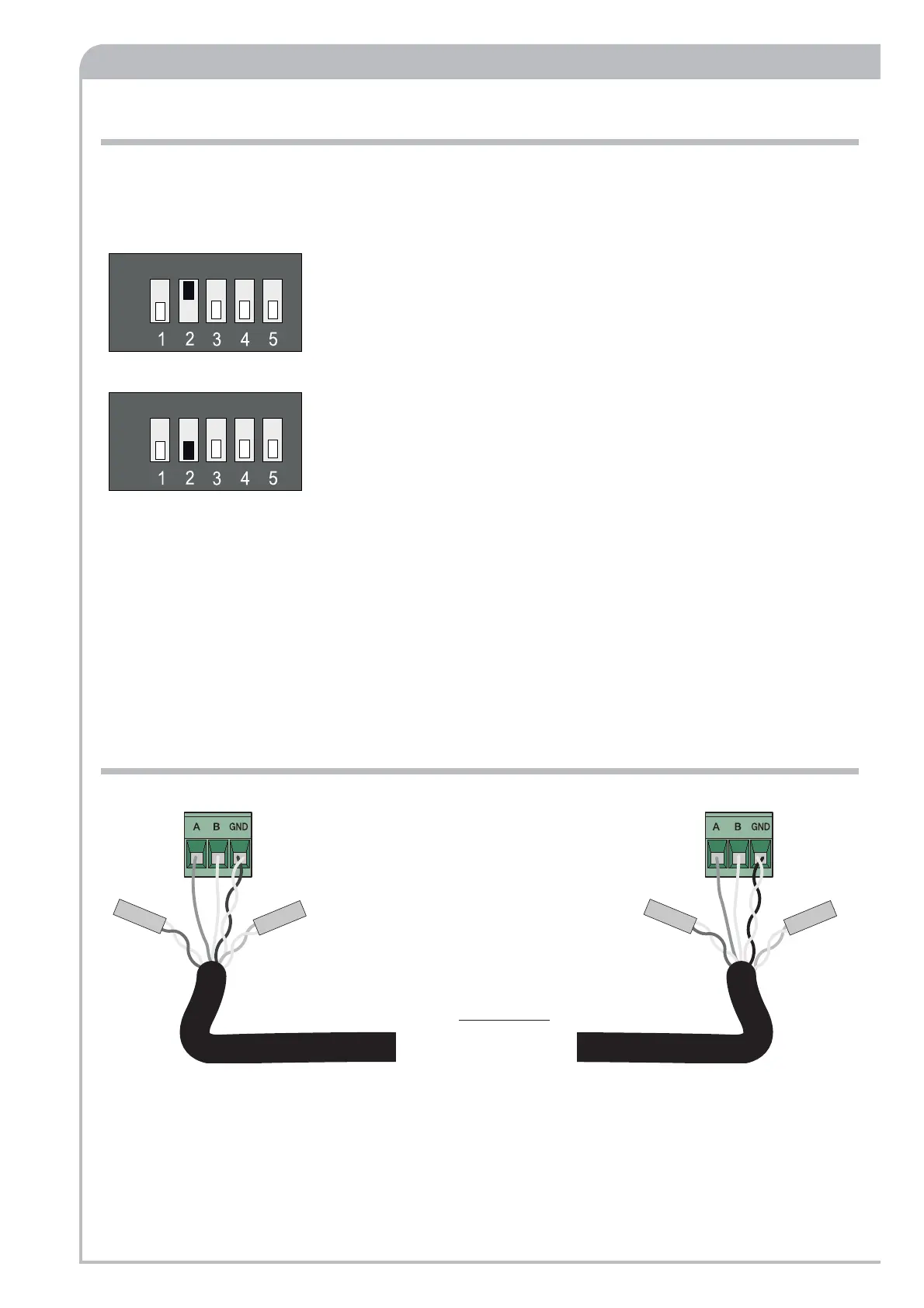

Dip switch RBM84 - Function selection
Annex A - How to connect the U/UTP cable
Cable NOT INCLUDED
recommended type:
unshielded
multipair cable
(CAT 5 - U/UTP - AWG24)
Connection mode:
√ 1 pair of twisted wires on GND (for example, WHITE/ORANGE pair);
√ 1 pair of untwisted wires on A and B (for example the WHITE wire on A and GREEN wire on B);
√ the other two pairs must be isolated.
