CAME V0670 Installation Manual

Pag.
8
8 - Manual code:
319T98EN
319T98EN ver.
2.0
2.0 11/2012 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

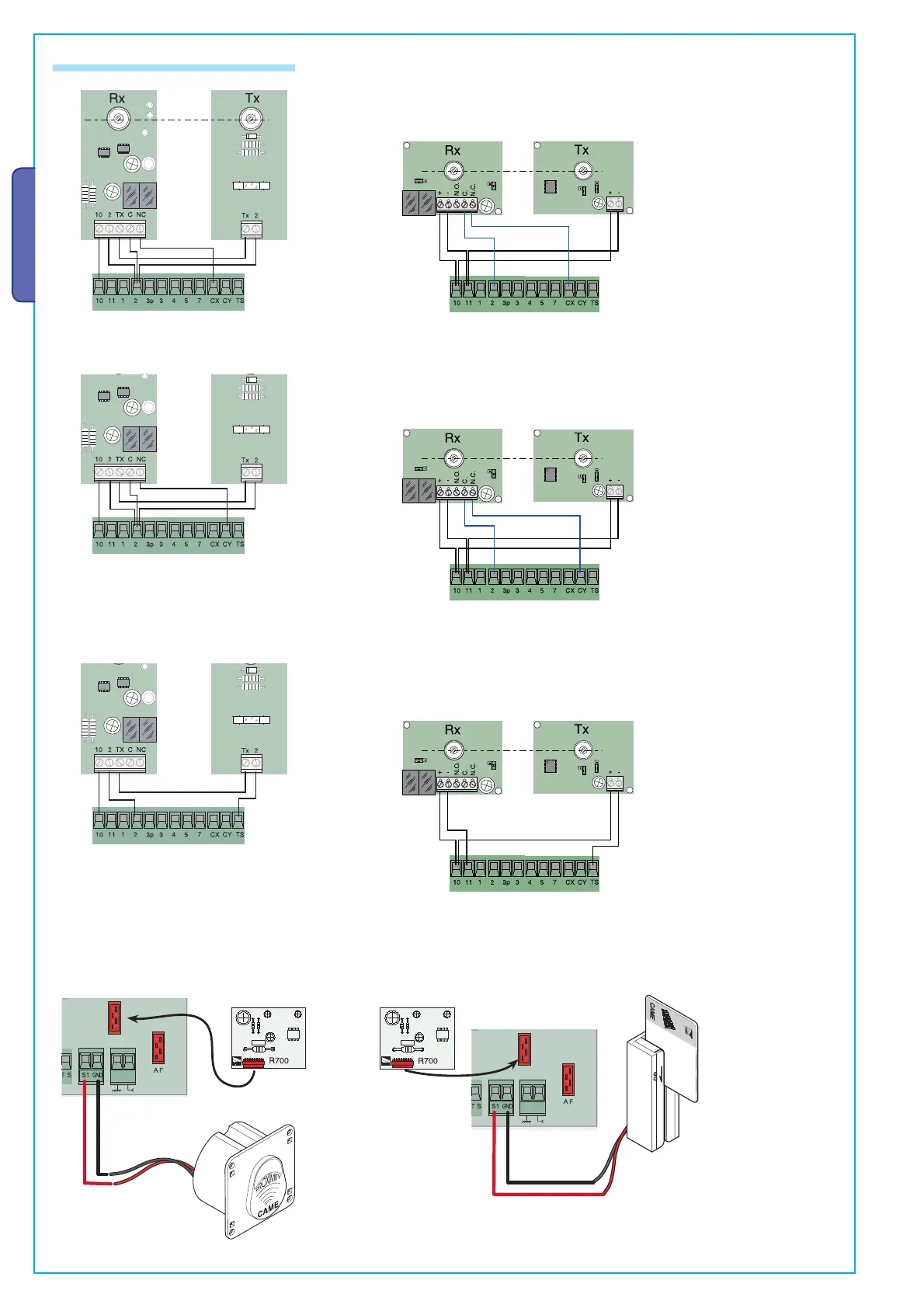

(2-CX) DOC and DIR photocells connection
(2-CY) DOC and DIR photocells connection
DIR
DOC
TEST DOC and DIR photocells working
(S1-GND) TSP00 (transponder) LT001 (slide-through card) sensor connection
Please note: for the board to recognise the sensors, the apposite (R700) decoder board needs to be connected.
Red
Blak
Red
Blak
TSP00
LT001
6.2 Electrical connections
DIR
DOC
DIR
DOC
ACCESS CONTROL
