M6
M6 x 80
033 ÷002
20 ÷ 30
10 ÷ 20
❶
❷
Page 12 - Manual FA01176-EN - 02/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

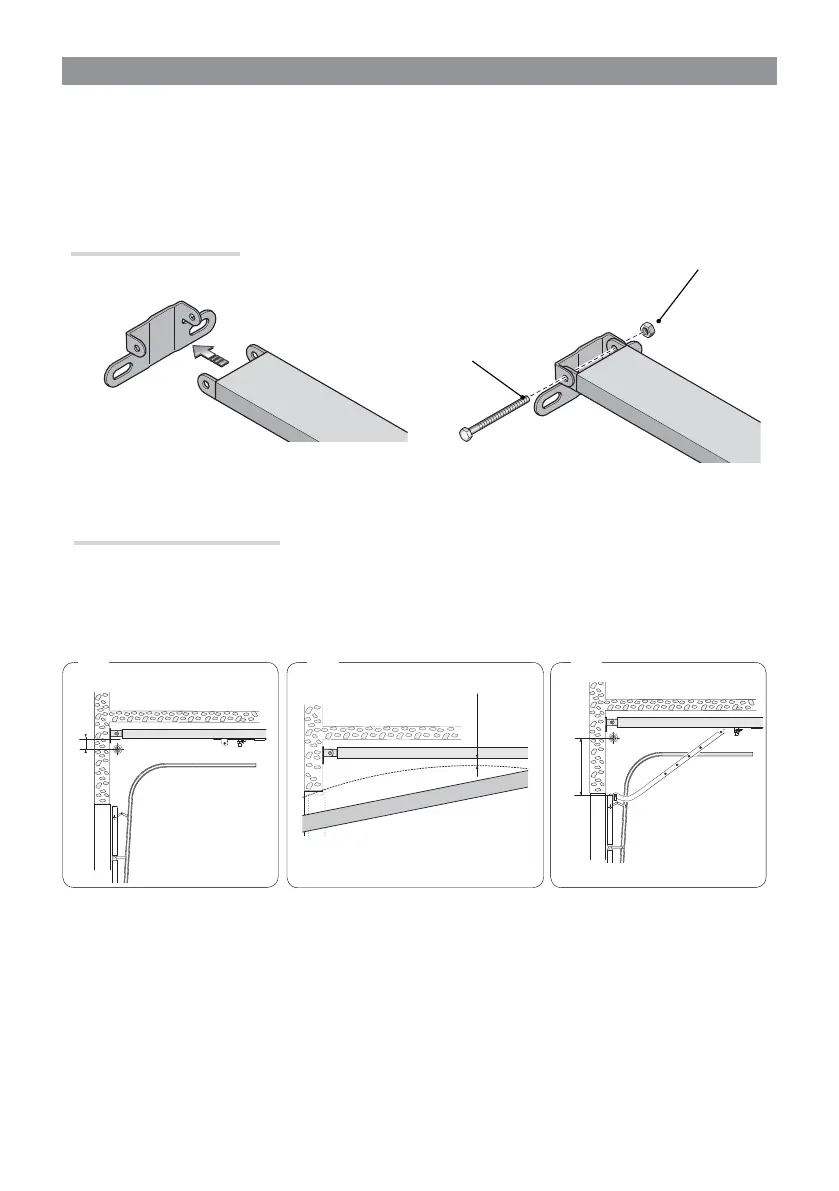

Assembling the guide
INSTALLING
⚠ The installation must be done by qualifi ed expert technicians and in full compliance with applicable laws and
regulations.
⚠
The following illustrations are mere examples in that the space for fastening the operator and accessories
varies depending on the installation area. It is up to the fi tter, therefore, to choose the most suitable solution.
Positioning the traction guide
for sectional doors exceeding the overall dimensions of the spring-pole brace.
for overhead doors between 10 and 20 mm from the apex point of the leaf's slide arc.
for partially retracting protruding counter-balanced overhead doors, use the V201 arm (see attached
technical documentation).
p. 12 -
Manual
FA01176-EN - 02/2019 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
