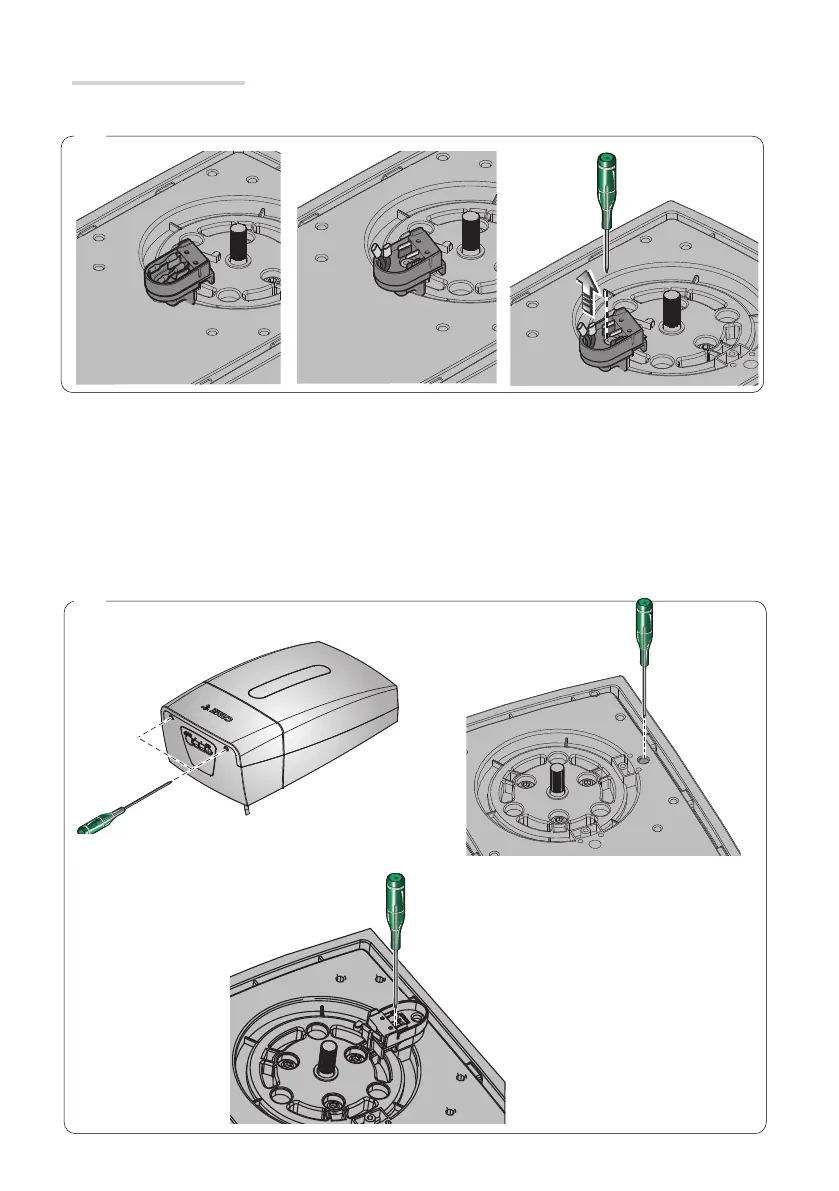

Moving the micro switch
Disconnect the cables of the micro switch
󱵩 and remove the latter.
󱵓 Remove the operator's cover. Pull out the electrical cable and fi t it through the hole.
Use a screwdriver to open up the predrilled hole for the electrical cables of the micro switch and fi r the cables to
the micro switch. Fit the micro switch to the operator.
Connect the connectors to the corresponding positions on the micro switch.
⚠ Reconnect the cables as originally connected (NO - C).
Fit the cover back onto the operator.
