TXRX
DELTA-S DIR
TX 2
TX 2
10 2 TX C
-
+
-
NC
DIRDELTA-S
RX
TX
TX 2
TX 2
10 2 TX C
-
+
-
NC
Page 23 - Manual FA01742-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Safety devices

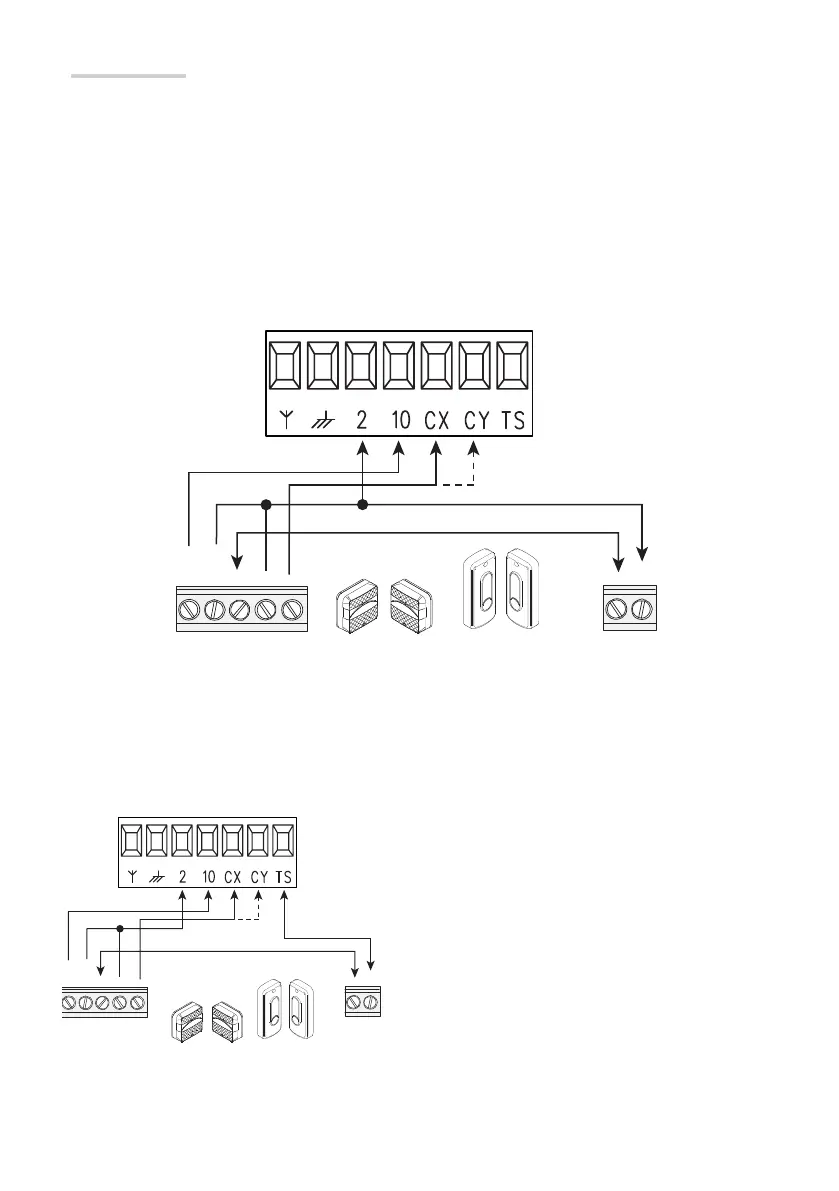

Photocells
Confi gure contact CX or CY (NC), safety input for photocells.
See functions for input CX (Function F 2) or CY (Function F 3) in:
- C1 reopening during closing. When the door is closing, opening the contact causes the door to invert its move-
ment until it is completely open;
- C3 partial stop. Stopping of the door, if it is moving, with consequent automatic closing (if the automatic closing
function has been entered);
- C4 obstruction wait. Stopping of the door, if it is moving, which resumes movement once the obstruction is
removed.
By default, the Cx and Cy contacts are deactivated:
Connecting the safety devices (i.e. the safety test)
At each opening and closing command, the control board checks the e cacy of the safety devices (such as
photocells).
Any malfunction inhibits any command and is signalled as E4 on the display.
Enable function F5 in programming.
p. 23 -
Manual
FA01742-EN - 12/2021 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
