CAME VER06DES - Safety and Configuration; Electronic Board Overview

❶
⓮
⓭
⓰
❻
❺
❿
⓯
❽
❾
❼
❸
❷
⓬
⓫
❹
Page 20 - Manual FA01742-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

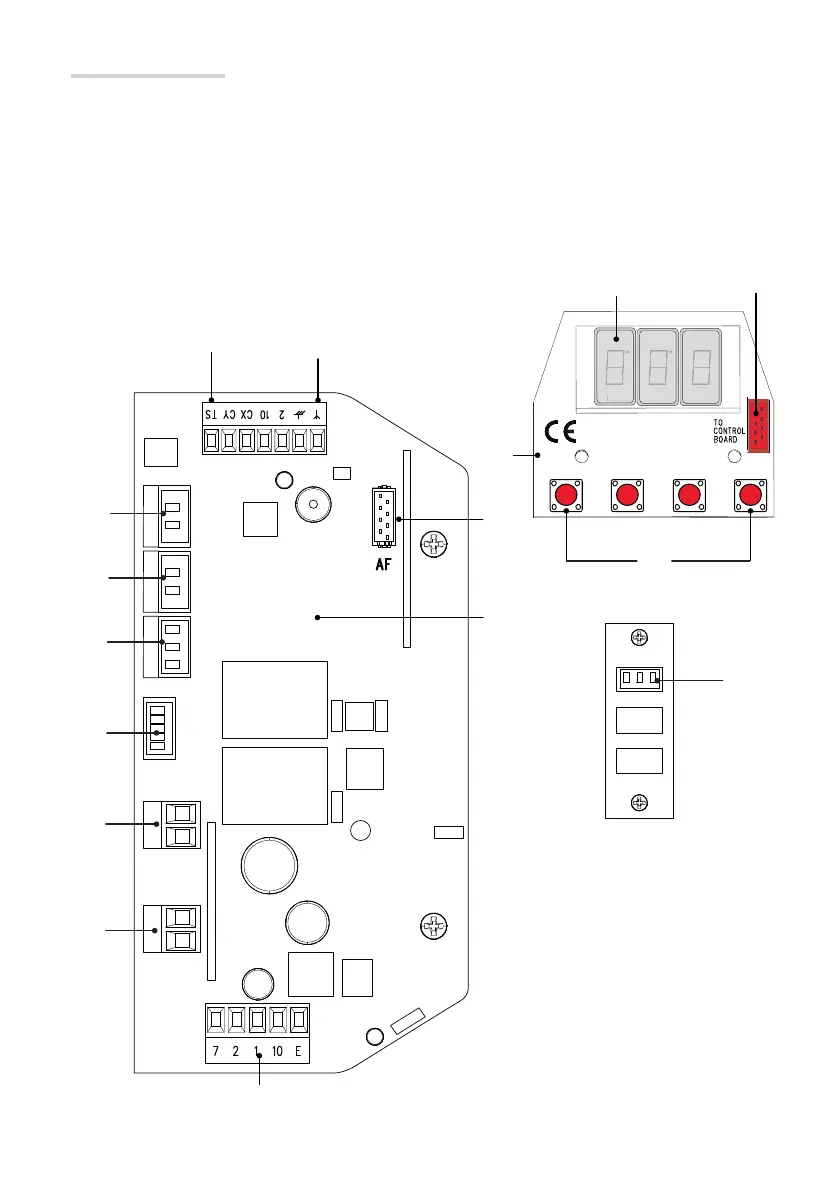

❶ Encoder connector
❷ Gearmotor connector
❸ Card power supply connector
❹ Electronic board
❺ AF card connector
❻ Antenna terminals
❼ Programming board connector
❽ Terminals for control and warning devices
❾ Safety-device terminals
❿ Line power-supply connector
⓫ Courtesy light cover connector
⓬Calibration microswitch terminal
⓭ Programming board
⓮ Display
⓯ Cable for connecting to the control board
⓰ Programming buttons
Description of parts
p. 20 -
Manual
FA01742-EN - 12/2021 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
