CAME VER08DES - Installation Procedure; Standard Installation Components

RX
TX
❹
❺
❸ ❶
❷
❻
❼
❽
❾
❻
Page 12 - Manual FA01742-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

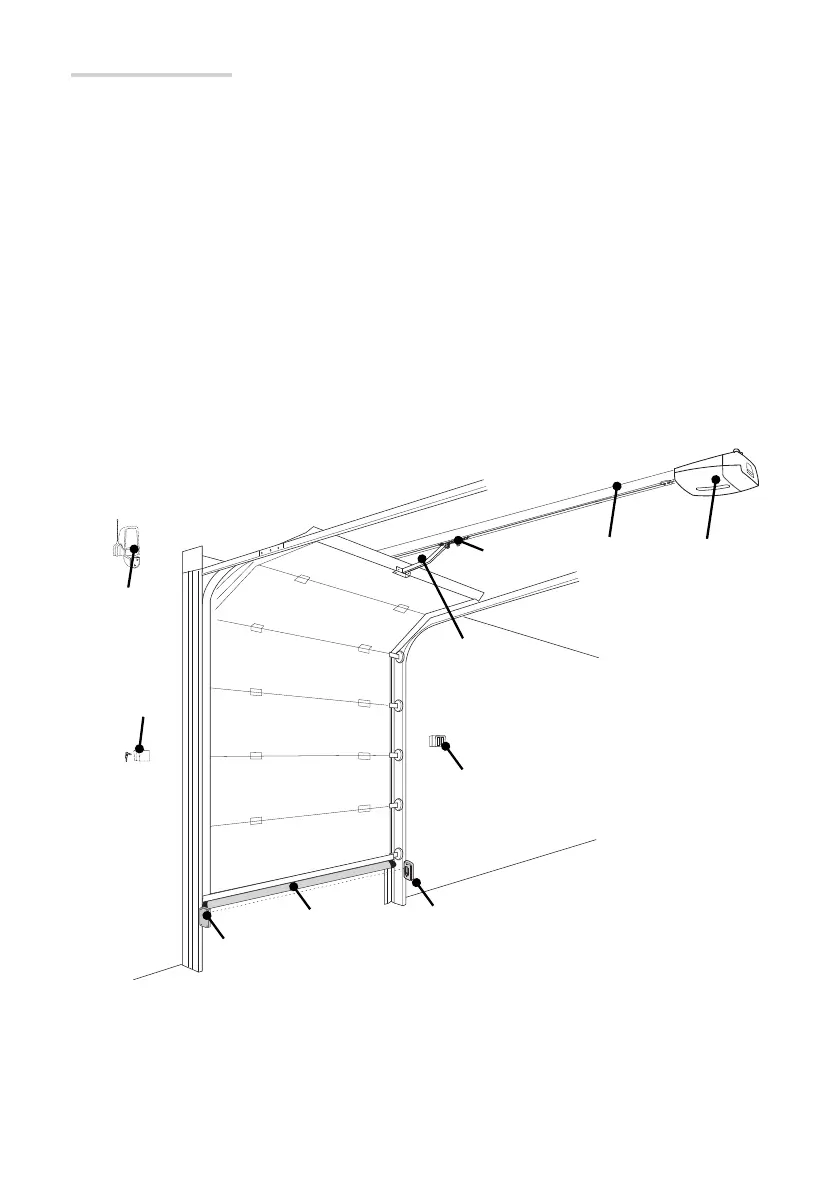

Standard installation
❶ Operator
❷ Guide
❸ Release device
❹ Transmission arm
❺ Key-switch selector
❻ Photocells
❼ Control device
❽ Sensitive safety-edge
❾ Flashing light and antenna
p. 12 -
Manual
FA01742-EN - 12/2021 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
