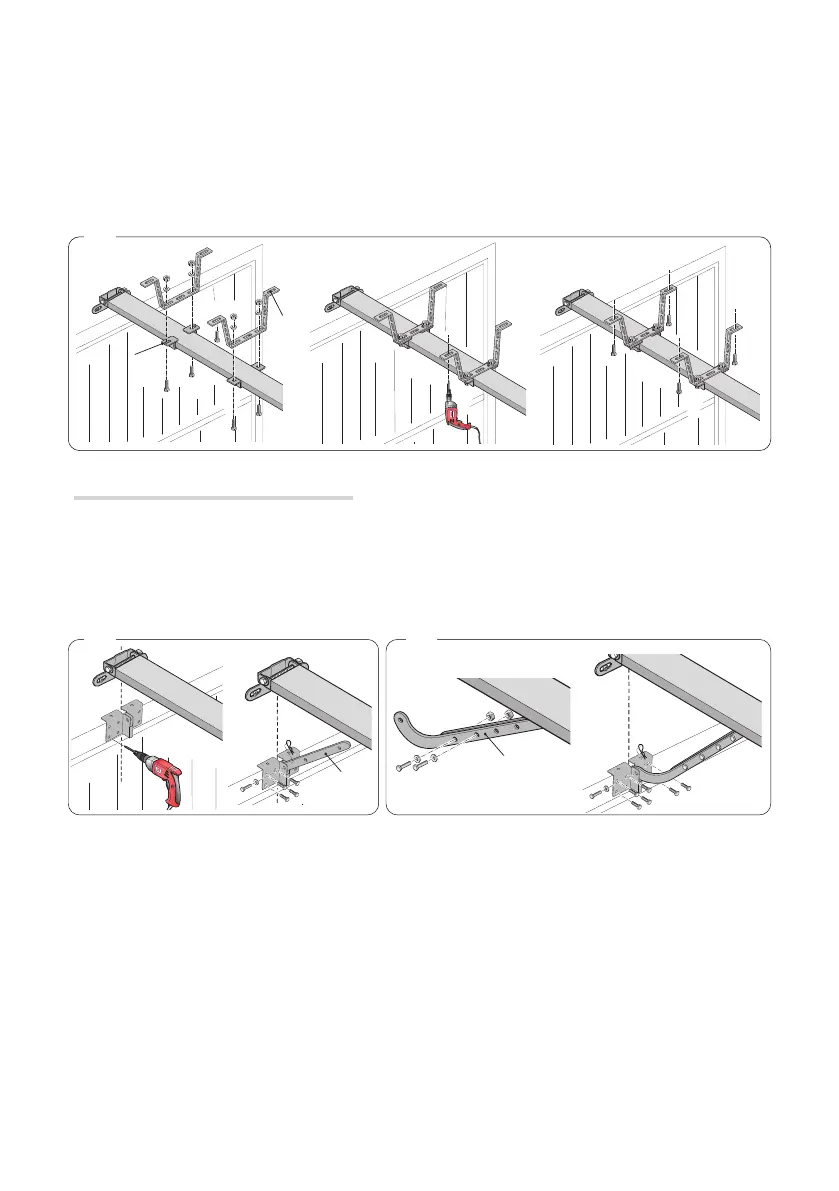

Bend the perforated fl at tabs so they fi t snugly and so as to compensate for the distance between the guide and
ceiling.
Fasten the fl at tabs to the support braces and to the U-shaped brace using the supplied screws and washers.
Drill the ceiling so the holes match those on the fl at tabs.
Fasten the fl at tabs to the ceiling using suitable dowels and screws.
Fitting the transmission arm to the door

Fit the transmission arm brace to the upper beam of the door, perpendicularly to the traction guide
❶ and
fasten it using the supplied screws or other suitable screws.
If mounting the curved lever
❷ fi t it to the transmission arm by using the supplied nuts and bolts
