CAME Z Series Installation Manual

Pag.
9
9 - Manual code:
319T98EN
319T98EN ver.
2.0
2.0 11/2012 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
7.1 Description of display commands
the ENTER key is used to:
- access the menus
- confirm and memorise the set value
The ESC key is used to:
- exit the menus
- cancel changes
the <> key are used to:
- move from one menu item to another
- increase or decrease any value
the <…..> symbols on the display indicate:
- the currently selected item

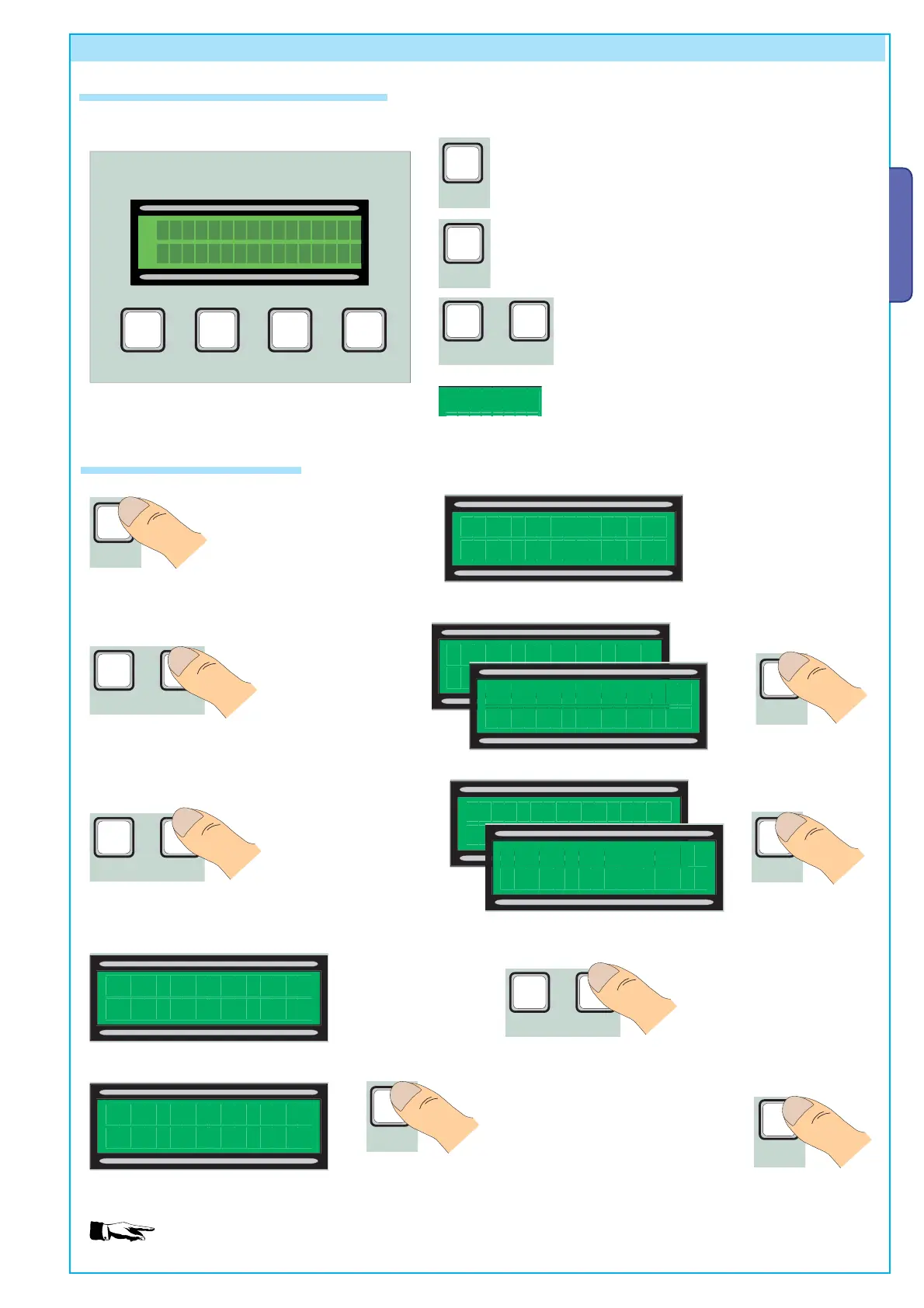

7.2 Browsing the menus
To enter a menu, keep the
ENTER key pressed for at least one
second.
To select a menu item,
move with the smaller
than/greater than
keys…
…then press ENTER
Also for the “sub
menus” move with the
smaller than/greater
than keys…
…then press ENTER
When the smaller than/
greater than <> symbols
are on the TIME fun-
ction, its values may be
changed.
To increase or reduce the
value use the smaller than/
greater than keys
…then press ENTER to
confirm…
…to exit the menu, wait 30
seconds, or press ESC, until
the initial screen reappears
Please note: when the menu is active the system cannot be used.
EXAMPLE
ESC
ENTER
ENTER
><
PROGRAMMING FUNCTION
ESC ENTER
><
PROGRAMMING FUNCTION
ESC ENTER
><
PROGRAMMING FUNCTION
ESC ENTER
><
PROGRAMMING FUNCTION
ESC
ENTER
ENTER
><
PROGRAMMING FUNCTION
ESC
ESC ENTER
><
PROGRAMMING FUNCTION
ESC
ENTER
ENTER
><
PROGRAMMING FUNCTION
ESC
ENTER
ENTER
><
PROGRAMMING FUNCTION
7 Programming
ESC ENTER
><
PROGRAMMING FUNCTION
Operation Time
12 sec
<>
ESC ENTER
><
PROGRAMMING FUNCTION
LANGUAGE
<>
ESC
ESC
ENTER
ENTER
>
>
<
<
PROGRAMMING FUNCTION
PROGRAMMING FUNCTION
LANGUAGE
<>
ESC
ENTER
ENTER
><
PROGRAMMING FUNCTION
ESC
ESC ENTER
><
PROGRAMMING FUNCTION
ESC ENTER
><
PROGRAMMING FUNCTION
ESC ENTER
><
PROGRAMMING FUNCTION
<
ESC ENTER
><
PROGRAMMING FUNCTION
>
ESC ENTER
><
PROGRAMMING FUNCTION
LANGUAGE
<>
ESC ENTER
><
PROGRAMMING FUNCTION
TIMING
<>
ESC ENTER
><
PROGRAMMING FUNCTION
Auto Clo.Time
20 sec
<>
ESC ENTER
><
PROGRAMMING FUNCTION
Auto Clo. Time
45 sec
<>
ESC ENTER
><
PROGRAMMING FUNCTION
Auto Clo.Time
20 sec
<>
...........
