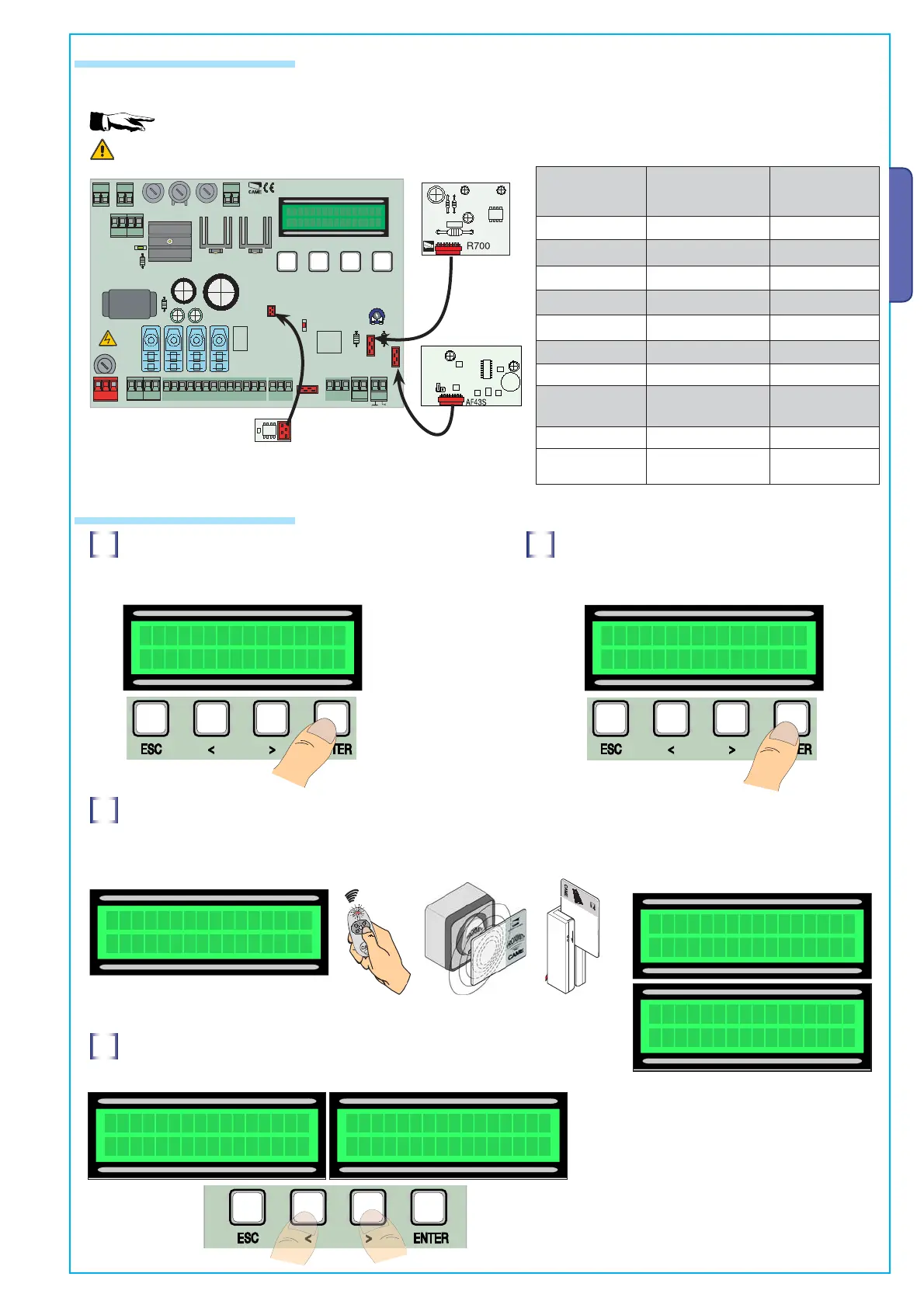

7.6 Decoding board
To control the board using remote controls or cards, connect the AF radio board chosen for the corresponding remote control, and
the R 700 board for the TSP00/LT001 proximity sensors.
Please note: users cannot be added without the proper decoding board (max. number of users is 250).
The AF and R700 boards must be inserted with the power source disconnected
7.7 Adding users
1
From the Radio/Users menu, select New User.
Press ENTER to confirm
2
Choose the function associated with the user (User
Function or Partial Opening). Press ENTER to confirm…
3
..a code will be required which may inserted with a remo-
te control, a slide-through card or a transponder, depending on
the type of sensors installed in the system at hand.
4
In any case a window will appear asking whether we wish to add a new
code or not.
By selecting NO the user adding procedure
will be terminated. By selecting YES the
procedure reopens at point 3.
n. 1 Await. cod
Saved!
n. 2 Await. cod
n. 1 exist
Another code?
NO
<>
Another code?
YES
<>
n. 1 Await. cod
.....
<>
New User
<>
Ass. function
User function
<>
Once the remote control or card code has been added, the
word Memorised will appear on the screen (if the code has
yet to be added), or the word On file (if
the code has already been added).
ACCESS CONTROL
:,
#/.42/,"/!2$
%3#
%.4%2
23%
02/'2!--).'&5.#4)/.
2
!&
,).%
&53%
!
!"
'.$
%
7!2.).'
4%2-)#!,
02/4%#4)/.
!##%33/2)%3
&53%!
#/.42/,"/!2$
&53%!
%
P
#8 #9
43
"!44%29
-/4/2
0/4%.#
$)30,!9
#/.42!34
-/4/2
&53%!
#!.#%,,)!54/-!4)#)
Frequency/MHz Board Trasmitter
FM 26.995 AF130 TFM
FM 30.900 AF150 TFM
AM 26.995 AF26 TOP
AM 30.900 AF30 TOP
AM 433.92 AF43S / AF43SM TAM / TOP
AM 433.92 AF43SR ATOMO
AM 40.685 AF40 TOUCH
AM 433.92 AF43S TAM / TOP
ATOMO / TWIN
AM 433.92 AF43TW TWIN
AM 868.35 AF868 TOP 862 NA
TOP 864 NA
Memory roll
