11
Model 288A Differential Pressure Indicating Switch Section 2

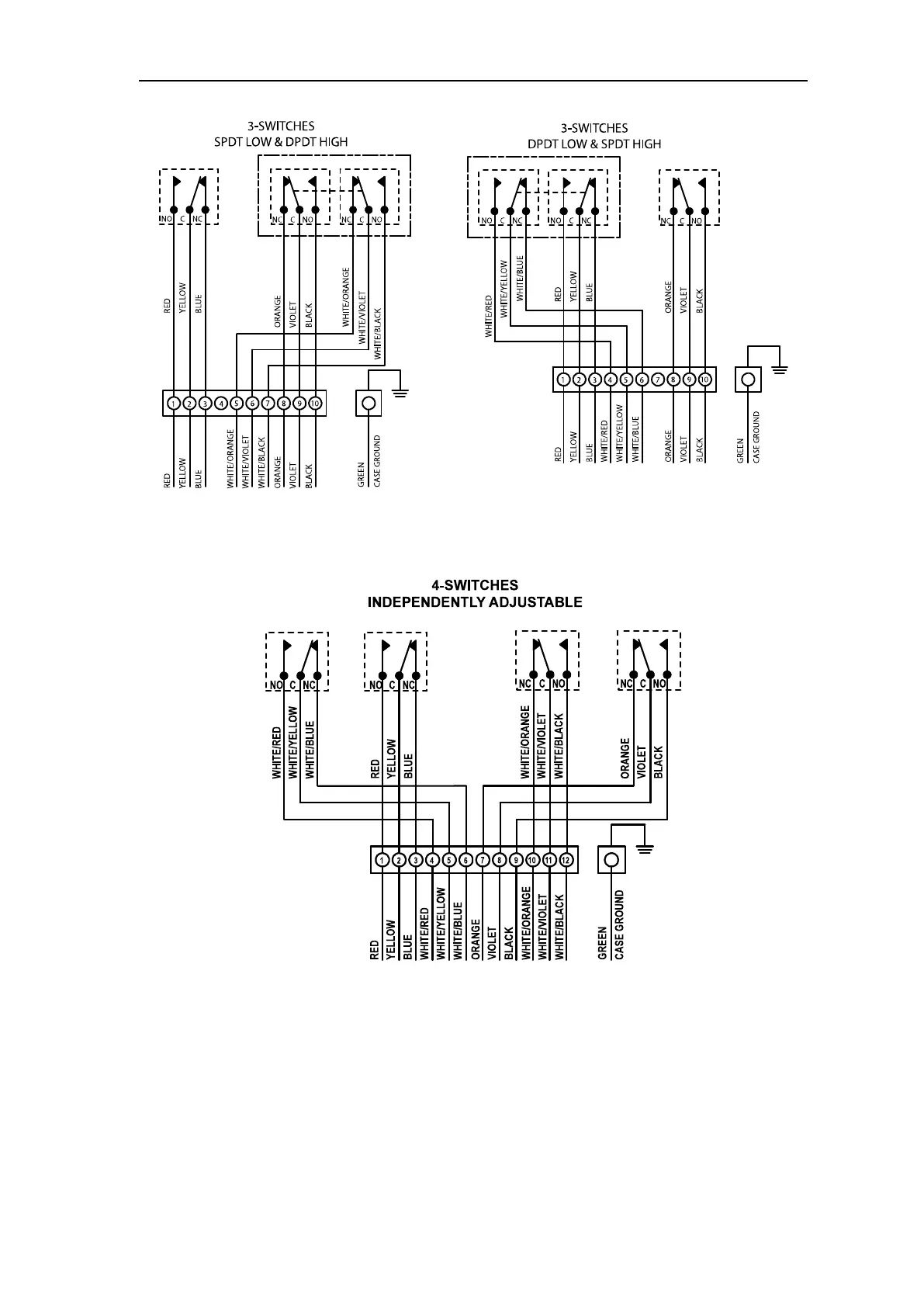

Figure 2.3—3-switch diagram
(current confi guration color codes - see Table 2.1, page 8)
Figure 2.4—4-switch diagram (3 or 4 independently adjustable switches)
(current confi guration color codes - see Table 2.1, page 8)
