Cameron 288A - DPU Dimensional Drawings

A-19
Model 224 Differential Pressure Unit Appendix A
DPU Dimensional Drawings

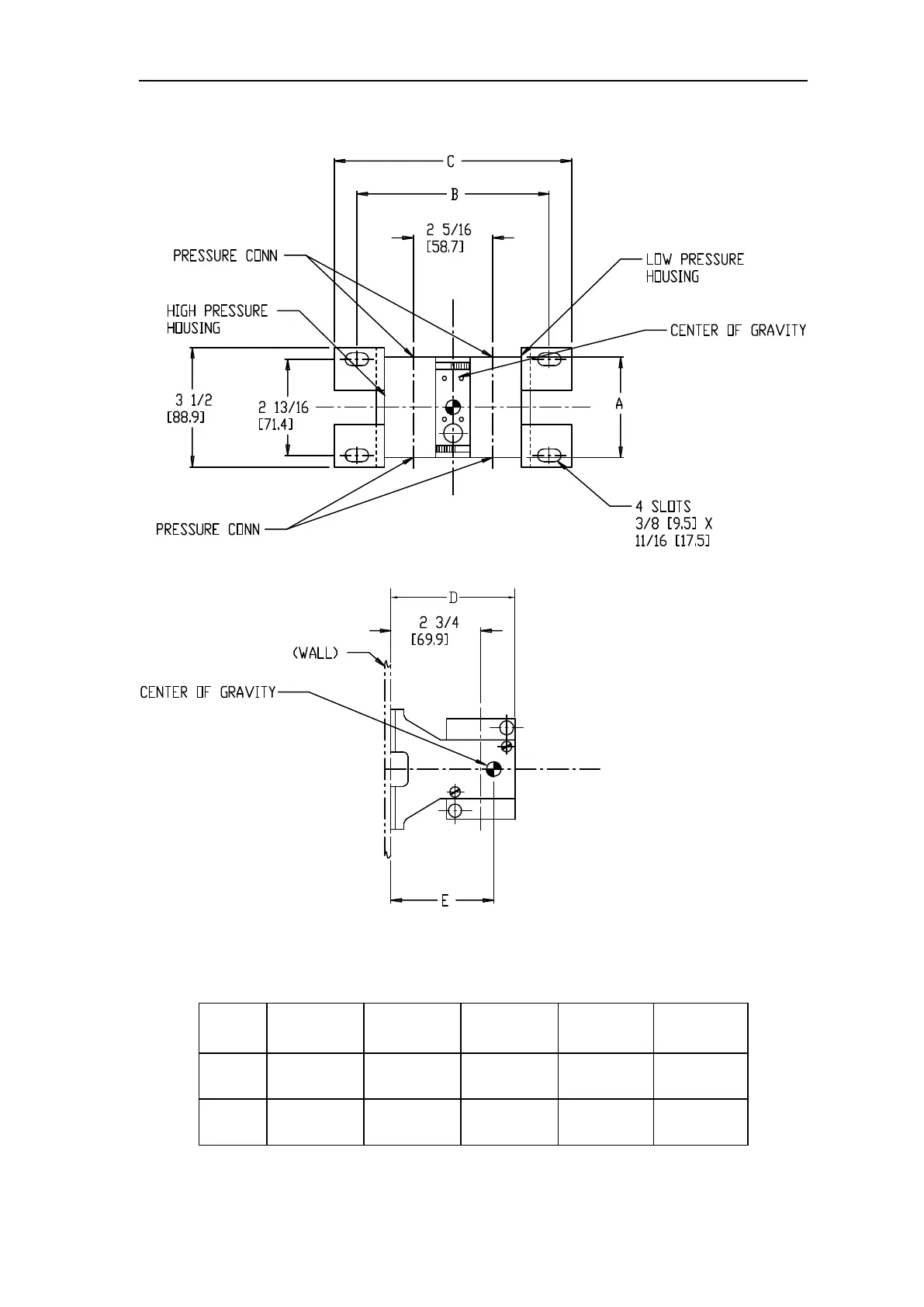

Figure A.18—Model 224 DPU dimensional drawing
Table A.5—Model 224 DPU Dimensions
SWP
(psi)
Dim "A"
in. (mm)
Dim "B"
in. (mm)
DIM "C"
in. (mm)
DIM "D"
in. (mm)
DIM "E"
in. (mm)
500 or
1500
2-15/16
(74.6)
5-5/8
(142.9)
6-15/16
(176.2)
4-3/4
(120.6)
3-1/8
(79.4)
6000 3-1/4
(82.6)
6
(152.4)
7-5/16
(185.7)
4-55/64
(123.4)
3
(76.2)
