EZ-IN
®
Series
T
urbine Flowmeter Manual
22

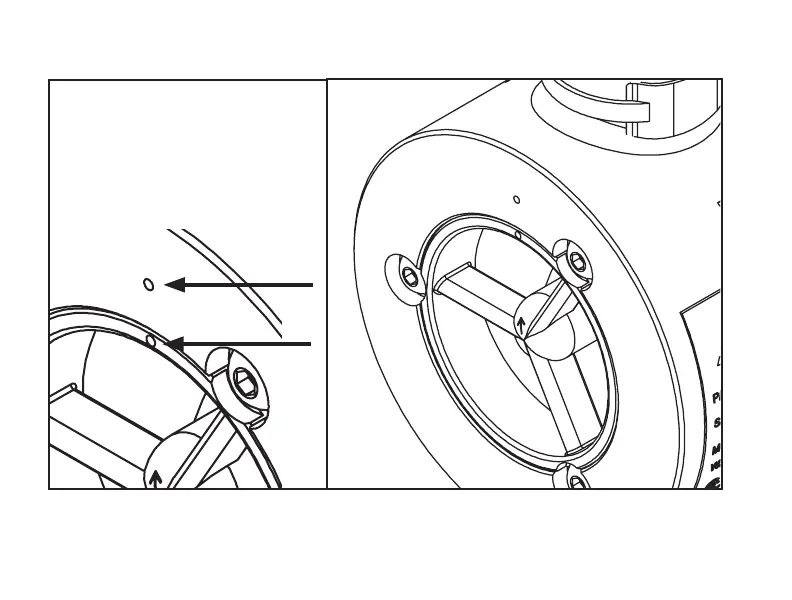

Insert each bearing support
such that the punch mark
aligns with the punch mark
on the face of the owmeter
.
Figure 7—Positioning of bearing supports
21
23
Table of Contents
Table of Contents
3
Introduction
5
Installation
10
Precautions
10
Installation Procedure
11
Calibration
12
Maintenance and Repairs
14
Removing the Meter from the Pipeline
14
Disassembling the Hex-Body Meter
15
Reassembling the Hex-Body Meter
16
Disassembling the Round-Body Meter
19
Reassembling the Round-Body Meter
20
Returning the Meter to the Pipeline
23
Specifications and Parts Lists
24
Temperature and Pressure Ratings
24
Flow Ranges
25
Internal Components Repair Kit for Hex-Body Meters
26
Internal Components Repair Kit for Round-Body Meters
27
Retainer Rings for Hex-Body Meters
28
Hardware Kits and Centering Rings (Raised Face Flanges)
29
Hardware Kits (Ring Joint Flanges)
30
Magnetic Pickups and Replacement Lock Nuts
30
