2.3.2 Vertical sliding door check
2.3.3 Appliance Positioning
First try your appliance in place in order to determine where to make the connection between the appliance and the chimney
flue.
Determine the position of the outside air intakes and provide the insulation on the adjacent walls.
Remove the appliance from the location before making the necessary openings on the exterior wall.
Put the appliance back into place and make all the connections (see examples under sections 2.3.5, 2.3.6 e 2.3.10).

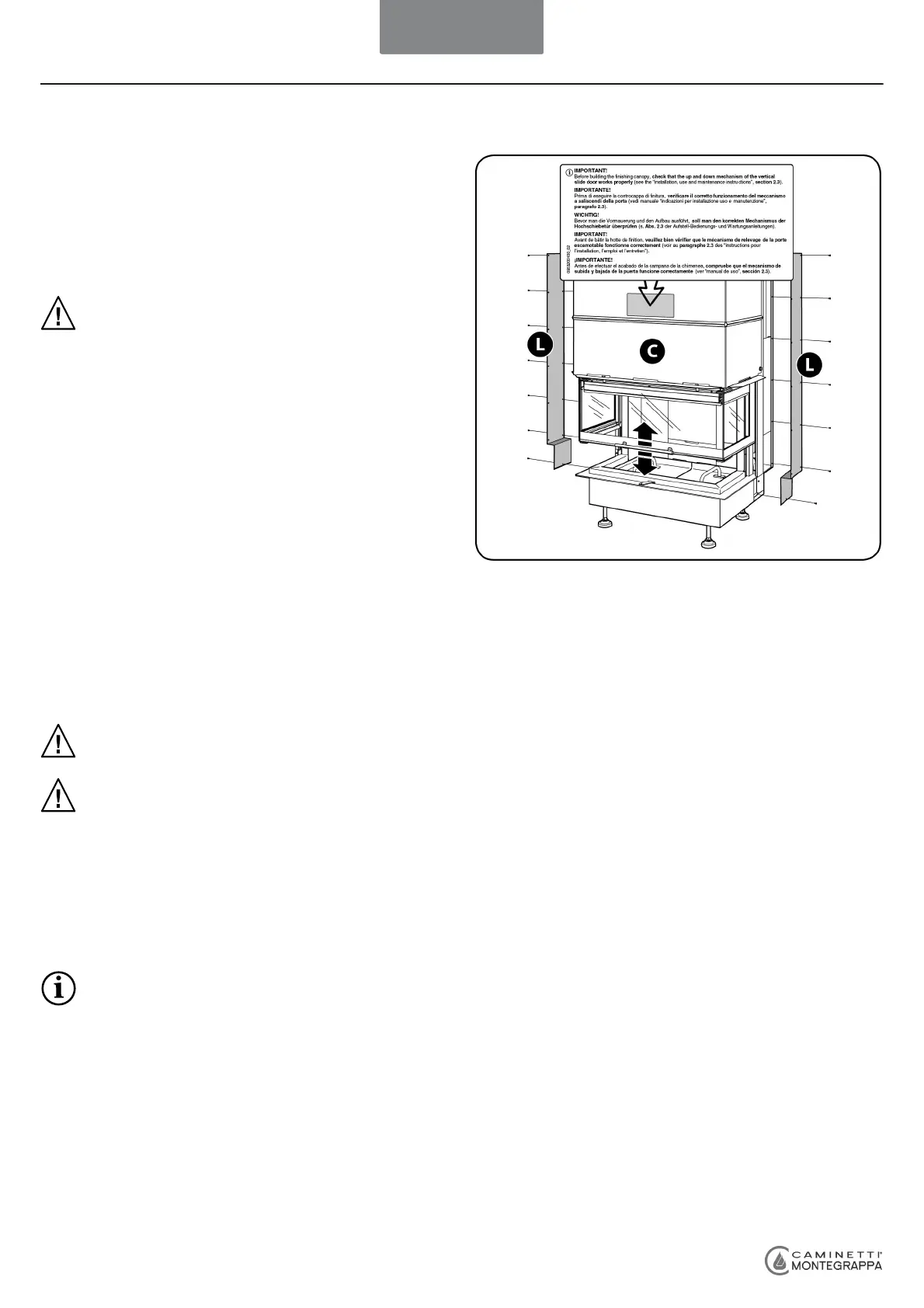

As indicated on the sticker applied to the door protection
guard [C], check that the up-and-down motion of the vertical
sliding door is correct by removing the 2 side closing plates [L]
(see the following figure) from guard [C] and ensure that the
sliding open-and-close mechanism is correct.
After checking, screw back into place the side closing plates [L]
on the door protection guard [C].
WARNING: In the event that the chain has slipped off
the toothed wheel, and considering that the chain is
equipped with a counterweight, pay attention to
your hands when putting the chain back onto the
toothed wheel.
IMPORTANT: When cutting a hole for the appliance exhaust pipe through a inflammable wall, provide the necessary
insulation whose thickness may vary from a minimum of 3 up to a maximum of 10 cm.
IMPORTANT: The correct installation of the unit must always meet the following requirements both in case the
cladding is of our own production or not:
– The angle of the connecting flue pipes with the chimney flue must not exceed 45°.
– The connection to an external air intake using the correspoding kits available in the price list (open vase kit Ø 10
cm and closed vase kit Ø 8 cm).
– 4+5 cm minimum clearance between the wall and the appliance back: 4 cm of insulating material (see section
2.4.8) and 5 cm of air (this clearance must be maintained to ensure an efficient air flow and to enable the natural
expansion of materials).
– Height of hearth at the same level as the cladding to be installed (for this operation, the appliance has been
equipped with adjustable feet).
Position the appliance while fully conforming to all the specifications and recommendations already indicated in
sections 15, 1.6, 1.7 e 2.2.
ENGLISH
TECH 3
23
