2.3.13 Warm air distribution
WARNING: While installing the warm air distribution system, the appliance must remain disconnected from
electrical power (double-pole switch off).

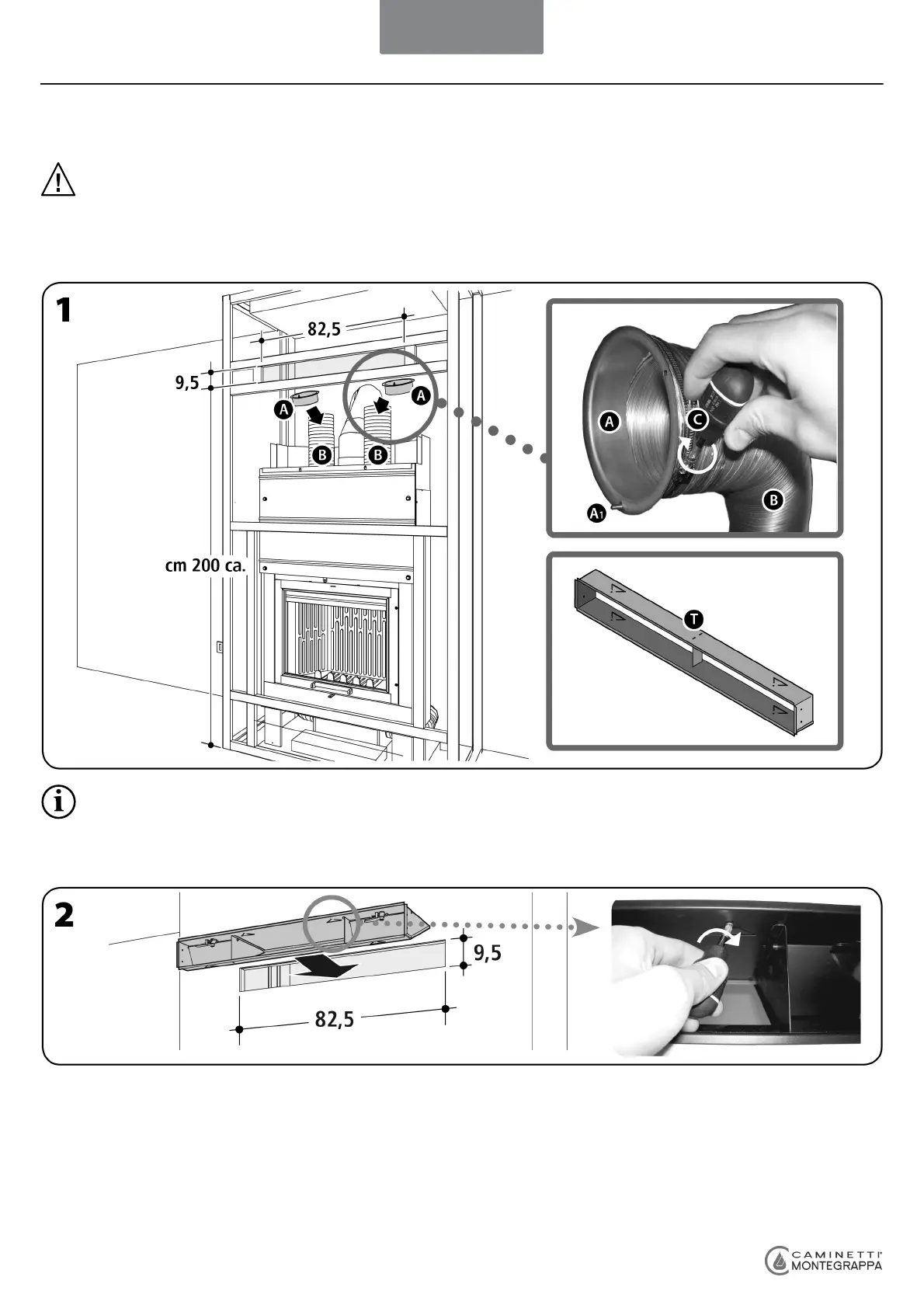

1. When building the finishing mantle or drywall panel in plasterboard, make an opening of 82,5x9,5 cm, 200 cm off the floor.
Insert the two unions [A] in the flexible aluminium pipes [B], already connected in advance on the rear openings of the
appliance and secure them with pipe collars [C].
Make the same opening also if the natural convection long hopper is installed and secure it to the metal structure as
indicated in point 2.
2. Complete the finishing mantle or drywall panel with the plasterboard and insert the long hopper [D] in the hole, securing it
with some screws to the metal structure.
ENGLISH
TECH 3
31
