2.3.4 Force convection pre-arrangement
Consult the pictures in section 1.8.3 carefully.
ATTENTION: Fix the fan box near the place of installation,
considering that you need to work at the back of the appliance
already lifted with a height of the hearth of at least 35 cm. Make
sure to work in safety, raising the appliance on 4 building
elements of approved solidity and guaranteed durability over
time.

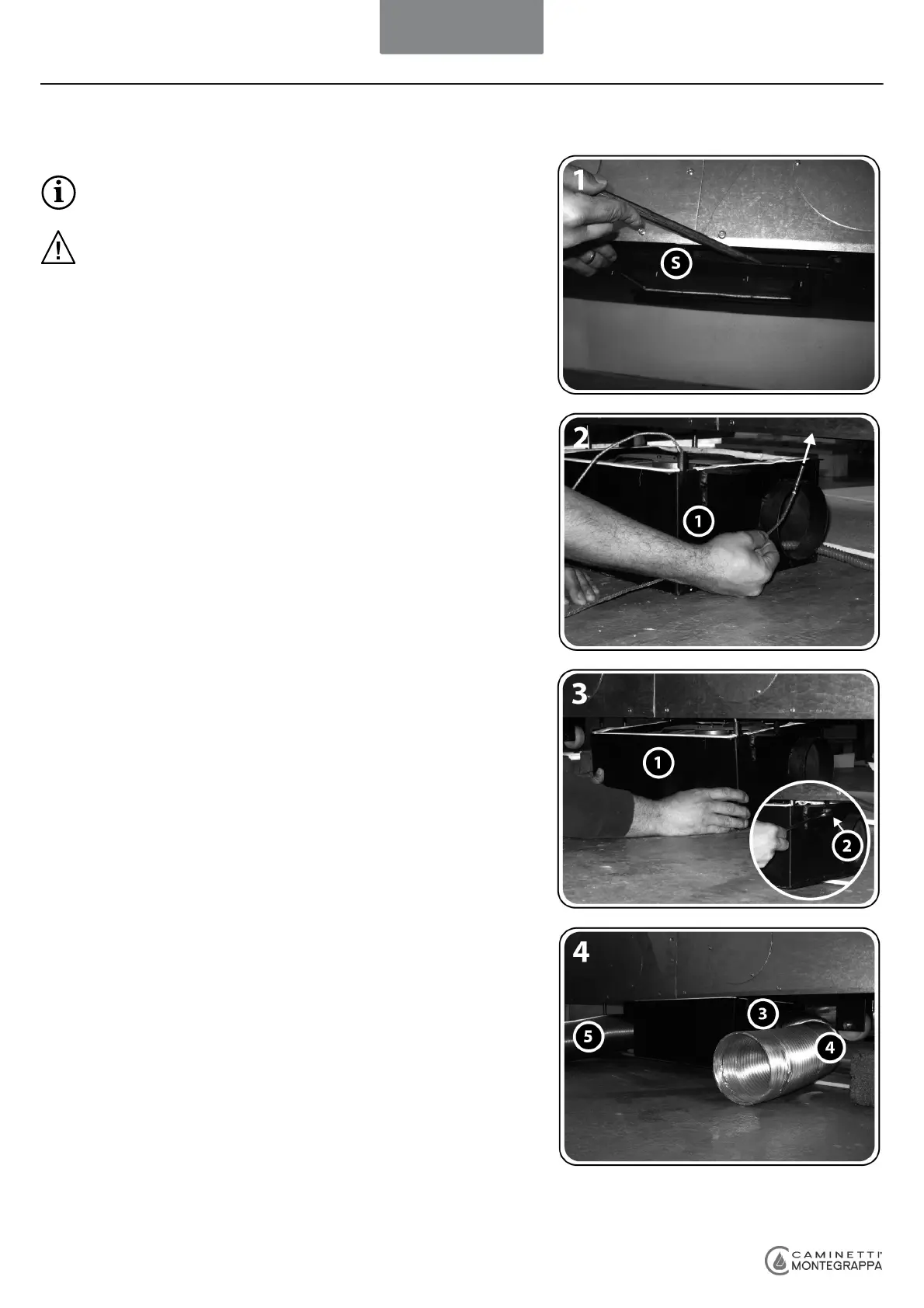

1. Once the appliance has been raised, working from the back, use a chisel
to remove the plate section from underneath [S] for the forced air flow
of the fan.
2. Position the fan box [1] under the appliance and feed the temperature
probe right into the hole on the right-hand side.
3. Tilt the fan box [1] and insert its upper edge on the flange arranged
further forwards at the front of the appliance; raise the rear part until
the two threaded pins fit into the holes of the side brackets, then secure
firmly with the two nuts [2].
4. Connect the two flexible aluminium pipes Ø 12 [4] and [5] to the
openings of the fan box and secure them with two pipe collars [3].
Lower the appliance down off the building elements and continue
assembly, observing the subsequent phases.
