30

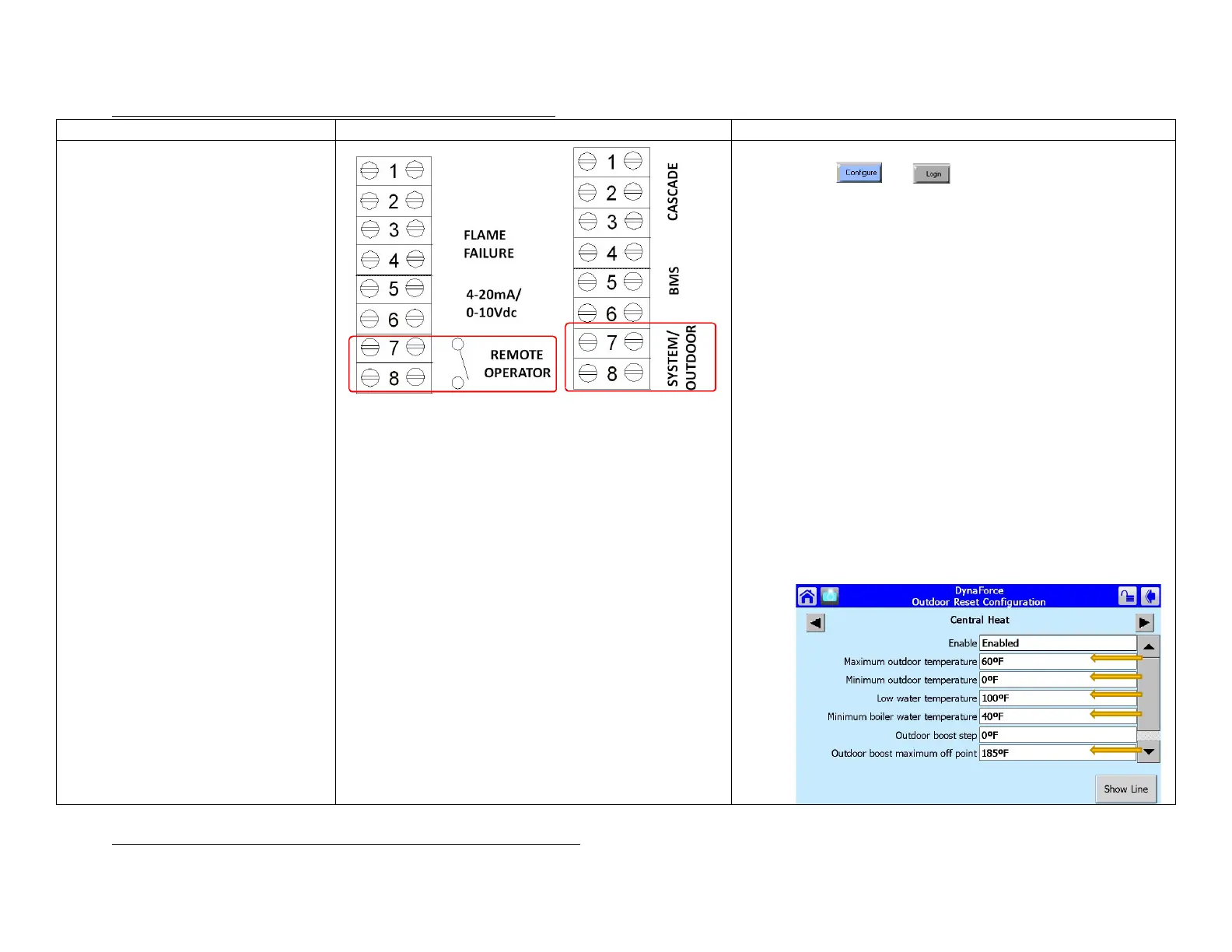

Modulation: Boiler Inlet, Outdoor Reset Operation (Standalone)
• Boiler operates with variable
setpoint determined by
outdoor reset curve
• Modulates on inlet sensor
(default)
• Heat demand is generated
when Remote Operator is
closed.
1) Connect outdoor sensor to System/Outdoor contacts
2) Press and
3) Press Outdoor Reset Configuration
4) Select Enable: Enable
5) Select Maximum outdoor temperature (WWSD)
6) Select Minimum outdoor temperature (Outdoor
Design)
7) Select Low Water Temperature (Min. Water Temp.)
8) Select Outdoor boost maximum off point (Design
Max.)
9) Press [CH – Central Heat Configuration]
10) Press Sensor Configuration
11) Select S5 (J8-11) Sensor
12) Select Connector Type: 10K NTC Single Non-Safety
13) Outdoor temperature source = S5 (J8-11) sensor
14) The control will proceed into a Lockout 2 condition
15) Press [Verify] > [Begin] > [Yes]
16) Press the reset button on the ignition control within
the alotted time
17) Place toggle switch to REMOTE for remote operation
(if required)
Modulation: System Sensor, Outdoor Reset Operation (Standalone)
