current failures.
You can attach the power cable to the boat accessory panel, however you may experience
undesirable electrical interference if you do so. Connect the cable to the battery as follows:
Red wire to positive (+) terminal.
Black wire to negative (-) terminal.
• Connecting the monitor to the same circuit as other devices such as tachometers, radios,
or trim switches may cause electrical interference.
• To protect both the cable and the display unit, Cannon highly recommends an in-line
1-amp fast-blow fuse in series with the red wire at the battery.
• For best performance of the IntelliTroll the Monitor should be connected to a 12V battery
that has the negative (battery–) terminal connected to the water. If the receiver/monitor
ground (battery–) is not connected to the water the system will be prone to intermittent
operation.
DISPLAY INSTALLATION (cont.)

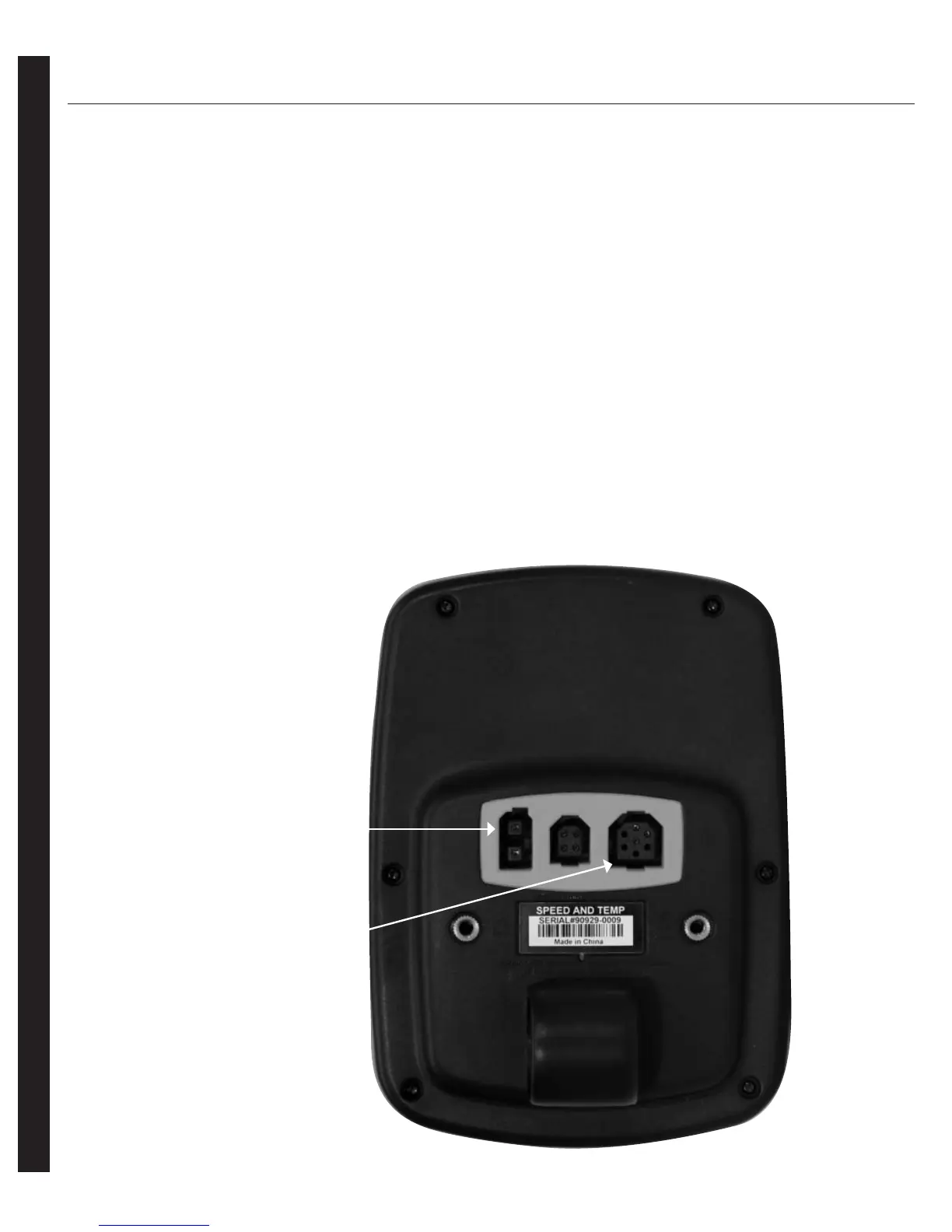

Power 12V DC
Antenna Connector
To Next Page
