6
PROBE INSTALLATION (When using the IntelliTroll Monitor)

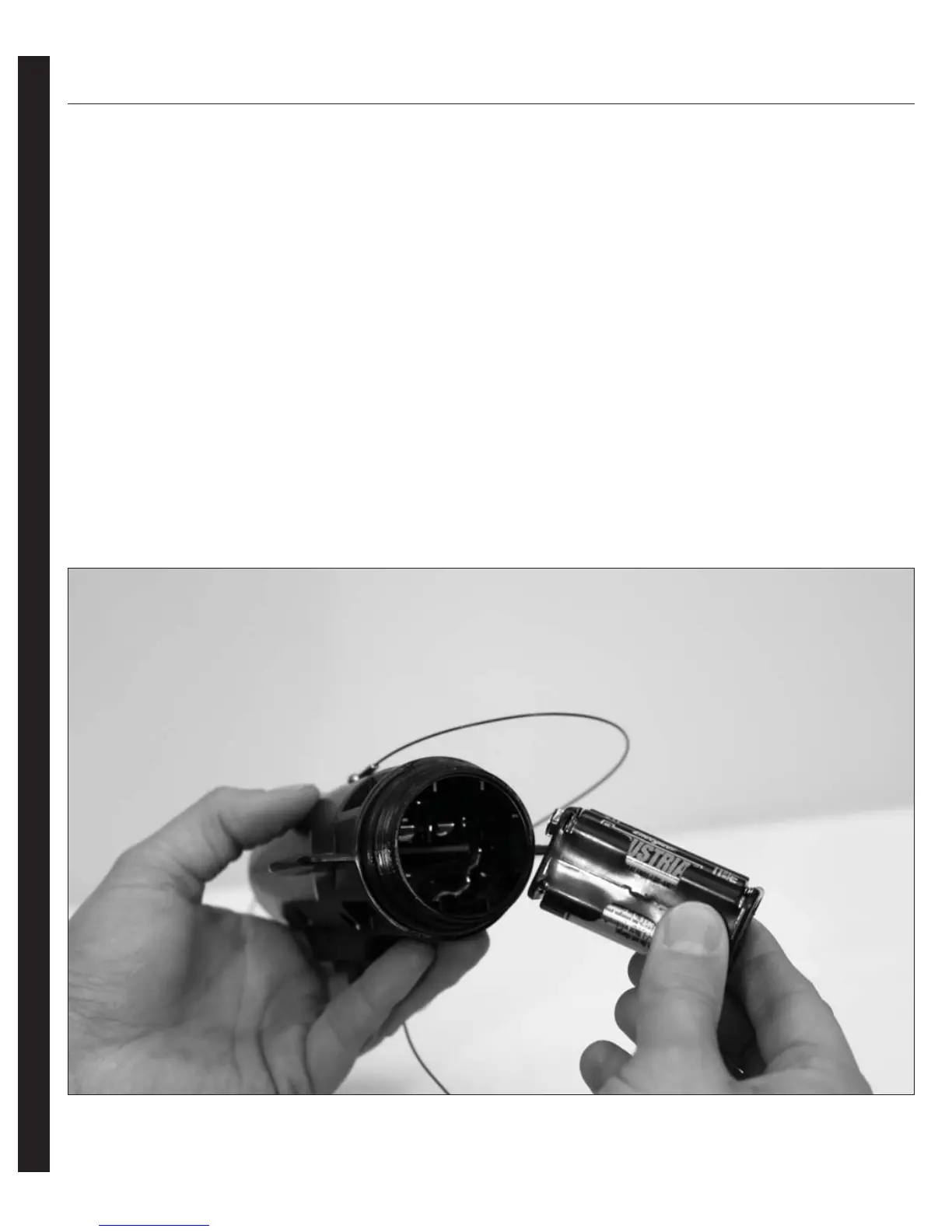

Installing the Battery
Unscrew the back cover of the probe module and remove the plastic battery pack holder.
Install 4 high quality Alkaline AA batteries into the battery pack. When inserting the battery
pack into the probe be sure that the snap terminals on the battery pack align with the spring
contact inside the probe. The battery pack will t in the probe in 2 different positions and it will
fail to operate when installed with the terminals and contacts misaligned. When installing the
battery cover back onto the probe make sure that both o-rings, one in the housing and one on
the battery cap are in place and are in good condition. Using a lubricant (such as petroleum
grease) on the o-rings will improve the seal. Tighten the battery cap until the cap meets the
body of the probe at the n. At this point the cap will stop.
The probe is designed to work for over 200 hours before changing batteries is required;
however, several factors such as temperature and frequency of use will affect battery life.
If you will be storing the IntelliTroll Probe for several months, you should remove the batteries
in order to prevent acid leakage and terminal corrosion.
