Clearing Staple Jams

3-87

Troubleshooting

If necessary, make sure to remove all of the paper in the Booklet tray before clearing a staple jam inside the saddle

stitcher unit.

This procedure is necessary only if the optional Saddle Finisher-AE2 is attached.

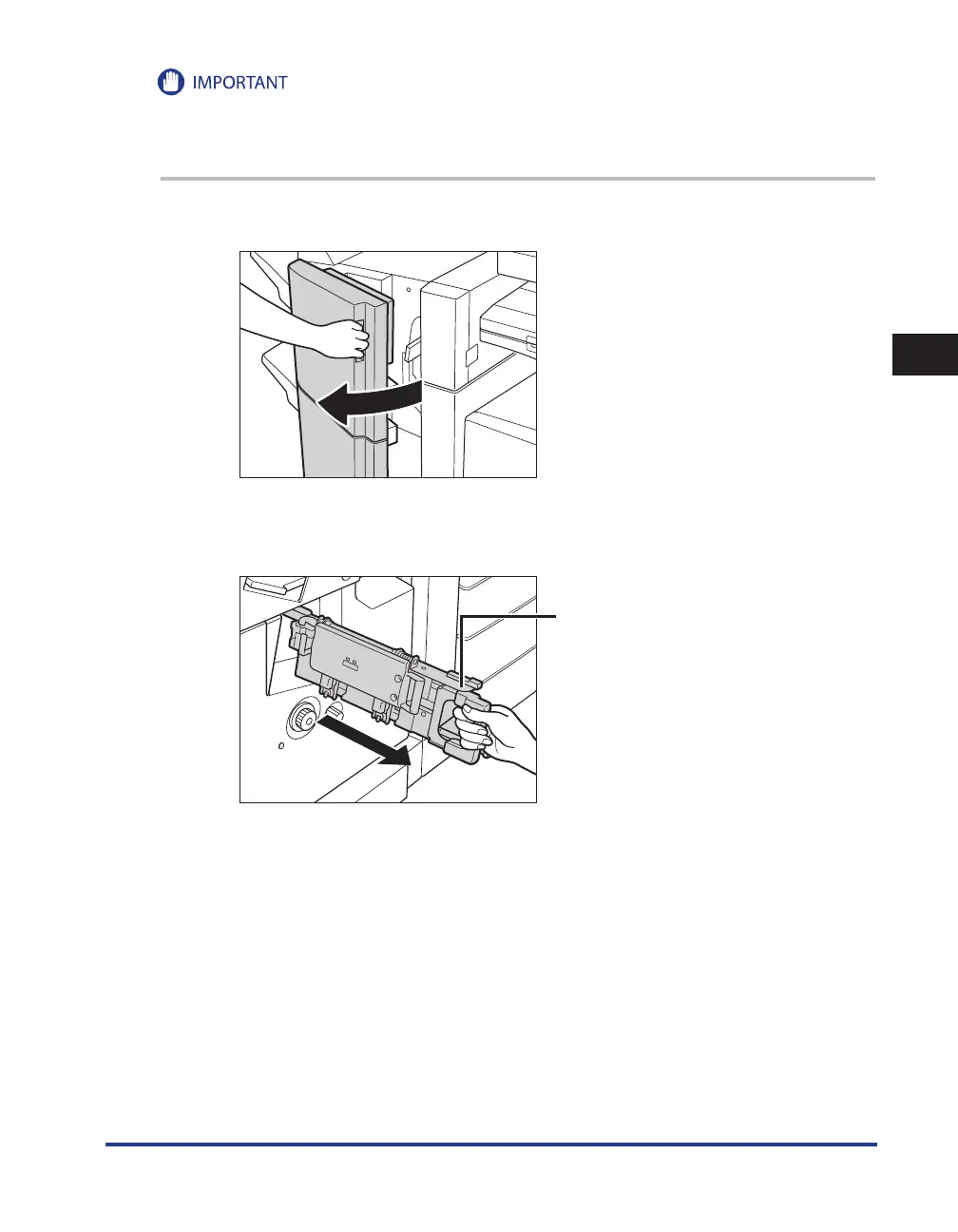

Open the front cover of the finisher.

Grip the saddle stitcher unit by its handle, and pull it out of the finisher

until it stops.

Saddle Stitcher Unit

•
