-22-
3. Description

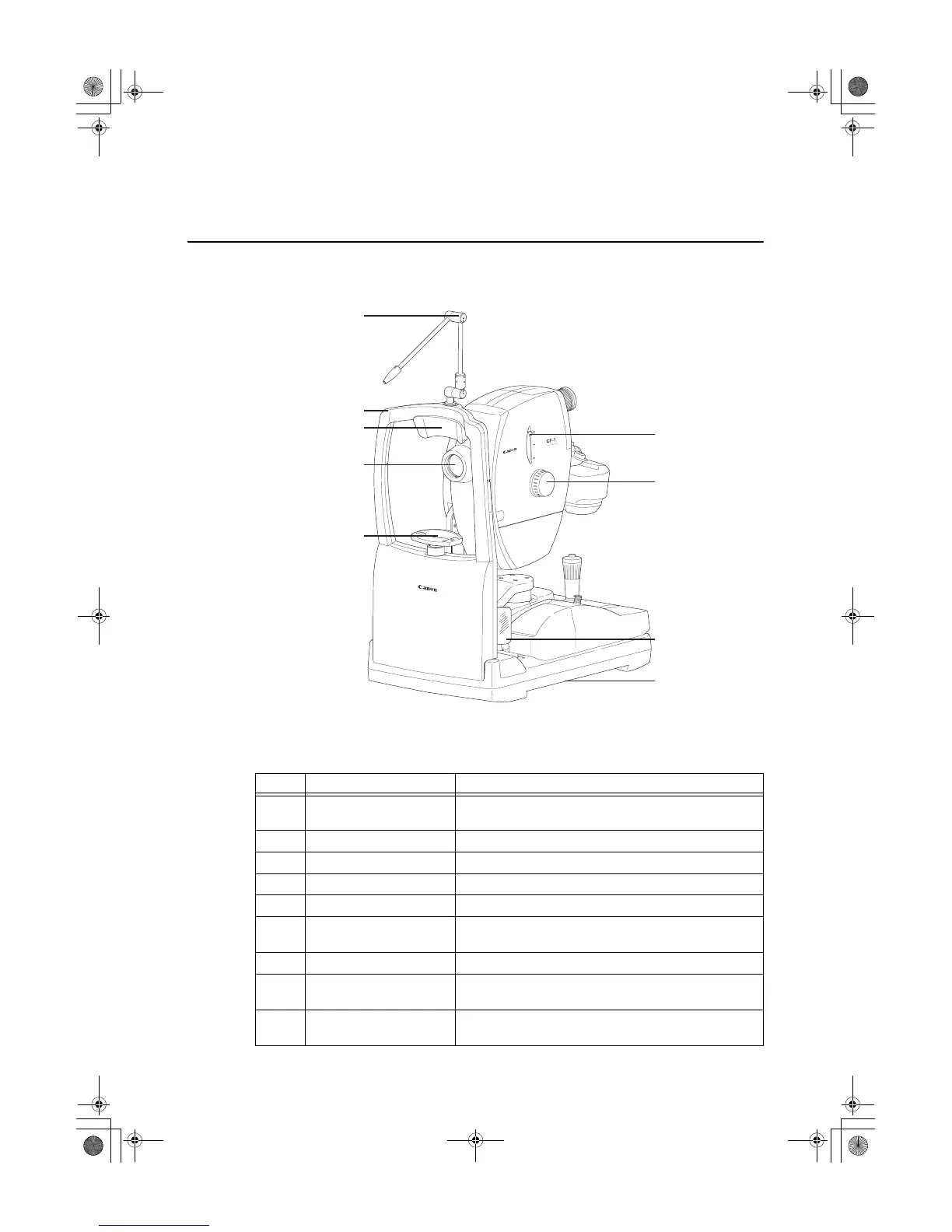

3.1 Main Unit
Symbol Name Function
a External eye fixation lamp
Used to guide the patient’s eye and determine which area of the
eye to photograph.
b Head rest Holds the patient’s head in place.
c Forehead rest Place the patient’s forehead against this rest.
d Objective lens Lens used for photography.
eChin rest Place the patient’s chin on this rest.
f
Diopter compensation
lever
Used when the target is not brought into focus by turning the
focus knob.
g Focus knob Used for focusing on the patient’s eye.
h Finger guard
This is a guard which prevents the patient from grasping the
head rest.
i Indentation for lift
To carry the camera, hold these parts at the left and right of the
main unit’s bottom panel.
a
b
c
d
e
f
g
h
i
