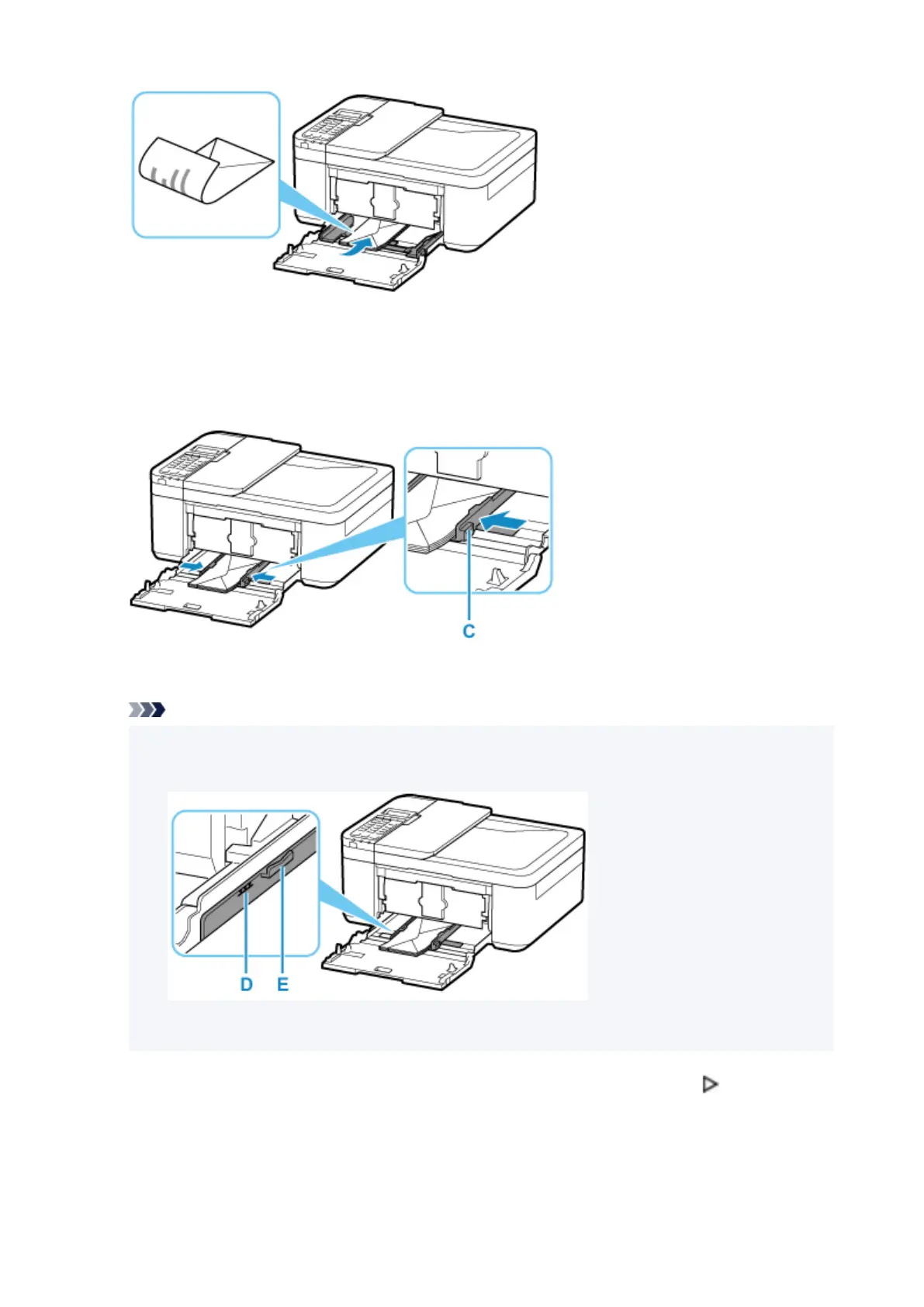

* The above figure shows the printer with the paper output tray raised.
6.
Slide the right paper guide (C) to align both paper guides with both sides of the envelopes.
Do not slide the paper guides too hard against the envelopes. The envelopes may not be fed properly.
* The above figure shows the printer with the paper output tray raised.
Note
• Do not load envelopes higher than the load limit mark (D).
• Keep the envelope stack height below the tabs (E) of the paper guides.
* The above figure shows the printer with the paper output tray raised.
7. Grab right and left sides of front cover and push cassette back until arrow ( ) on front
cover is aligned with edge of printer.
After pushing the cassette back properly, the paper information registration screen appears on the LCD.
