Canon imagePROGRAF iPF8400S Service Guide

imagePROGRAF iPF8400S Service Guide
imagePROGRAF iPF8400S Service Guide September 2013
Page 11

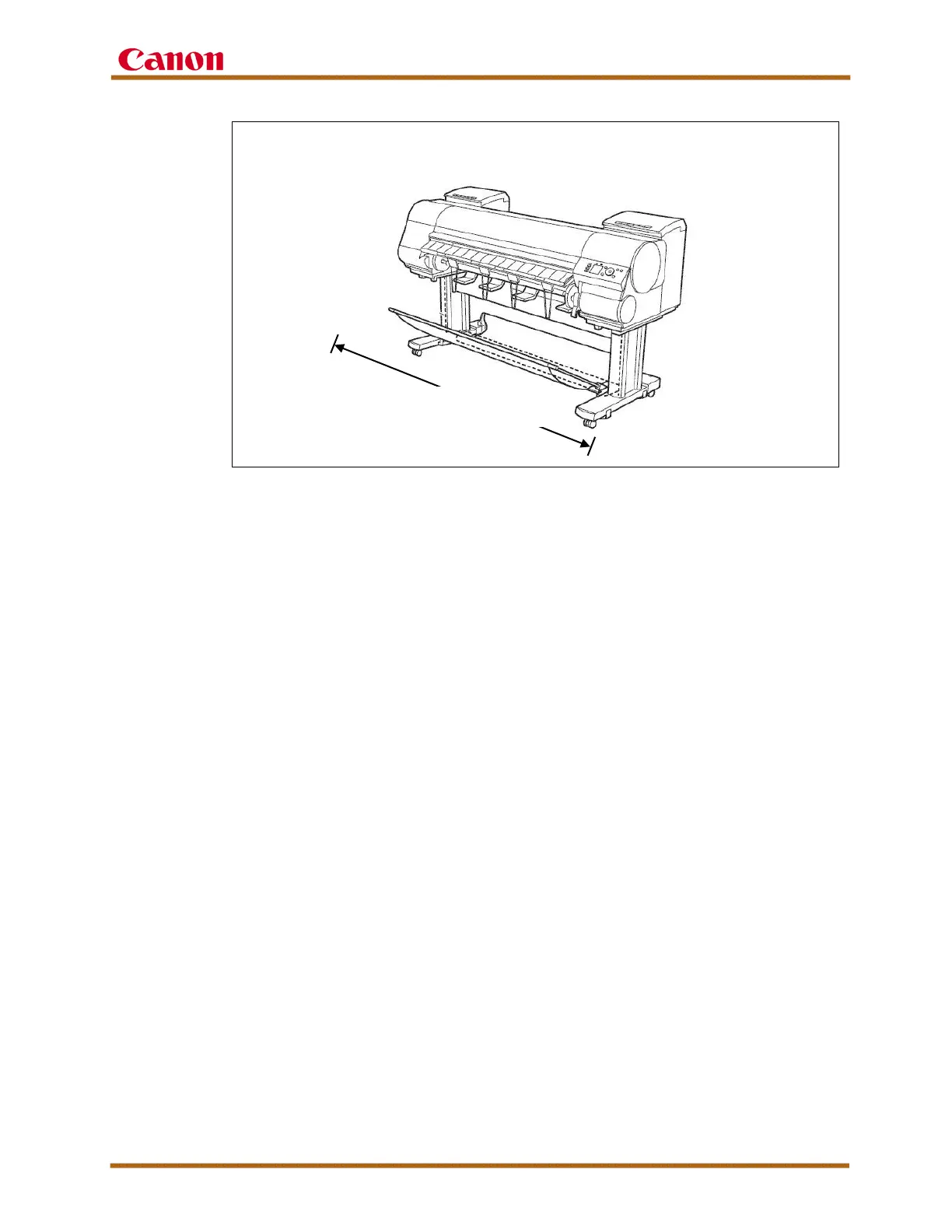

Figure 5- imagePROGRAF iPF8400S Installation Space Diagram (Length)
Length
Refer to the “Quick Start Guide” that is packaged with the printer and the
Service Manual for complete unpacking, installation, reinstallation, and
installation space requirements.
E. Estimated Installation Times
Estimated installation times shown are the length of time needed to
unpack and install the main unit. The estimated unpacking and installation
times are based on two experienced technicians. Canon USA
recommends that service personnel perform the installation, with four (4)
or more persons to unpack and move the printer, and two (2) or more
persons to install it.
Included in the calculation of the estimated installation time are the
following:
• Power outlet preparation
• Installation space preparation
• Unpacking and positioning the printer (main unit) on a stand or table
• Installing the Printheads, ink tanks, and connecting the power cable
• Checking the printer operation and adjusting the printing position
• Connecting the printer to a computer and installing the printer driver
and software.
Length, Approximately 91"

Canon imagePROGRAF iPF8400S Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Ink Type	Pigment-based
Number of Ink Colors	8
Maximum Media Width	44 inches
Operating Systems Supported	Windows, macOS
Print Technology	Inkjet
Connectivity	USB 2.0
Media Sizes	Roll Paper: 10"-44"
Media Types	Glossy photo paper, Matte photo paper, Proofing paper
Ink Cartridge Capacity	130 ml
Power Consumption	190W or less (printing)
Ink Cartridge Configuration	MBK, C, M, Y, PC, PM, GY
