Revision-1,
MAR. 19.80

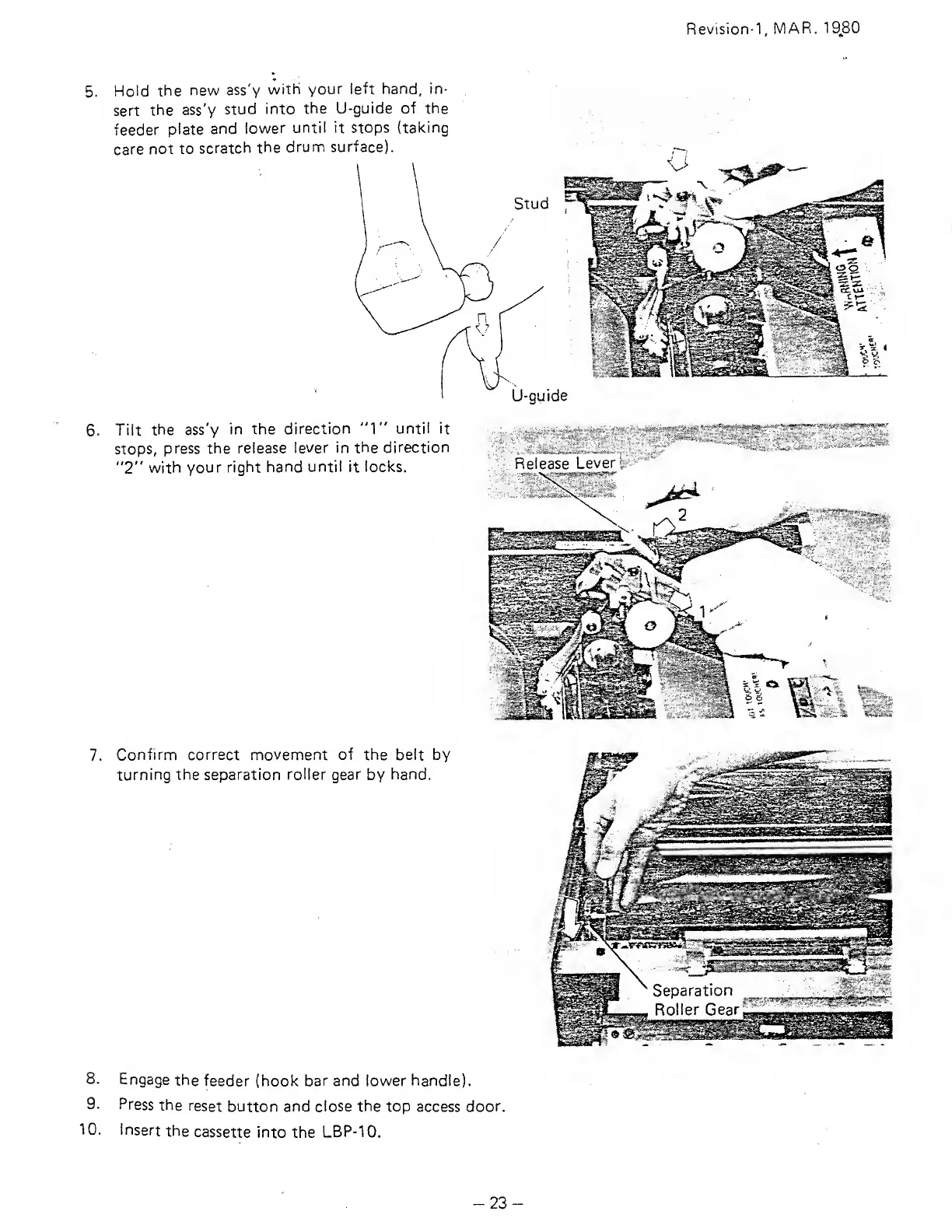

Hold
the
new ass'y
with your left
hand, in-
sert
the
ass'y
stud
into
the U-guide of the
feeder
plate
and
lower
until
it stops (taking
care
not to
scratch
the
drum surface).
U-guide
Tilt
the ass'y
in the
direction
"1"
until
it
stops,
press
the release
lever
in
the
direction
"2"
with
your right
hand
until
it locks.
ftj
-S,..?***!?*,
%«>-
Release
Lever
^ t
7.
Confirm correct movement of the belt
by
turning
the separation roller gear
by
hand.
8.
Engage
the
feeder (hook bar
and
lower
handle).
9.
Press
the
reset
button
and close the top
access
door.
10. Insert
the
cassette
into the
LBP-10.
23
