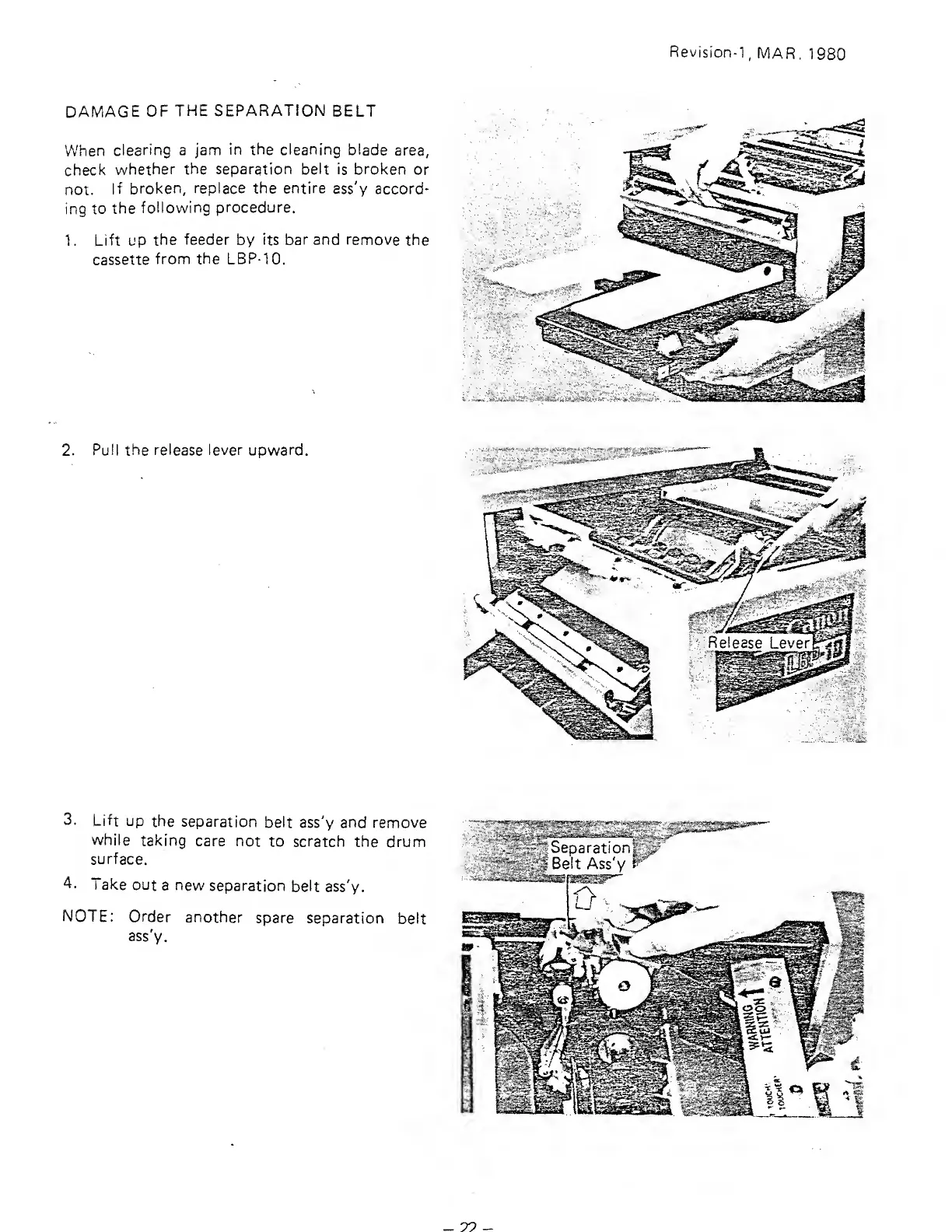

DAMAGE
OF
THE SEPARATION
BELT
When
clearing a jam
in the cleaning
blade
area,
check
whether
the separation belt
is broken
or
not.
If
broken,
replace the entire
ass'y accord-
ing to
the
following procedure.
1. Lift up
the
feeder
by its
bar and
remove
the
cassette
from the LBP-10.
^s-^
2. Pull the
release lever
upward.
3.
Lift up
the separation
belt
ass'y and remove
while
taking
care
not
to scratch
the drum
surface.
4.
Take
out
a new
separation
belt ass'y-
NOTE:
Order
another
spare separation
belt
ass'y.
