Canon mp628 - Page 24

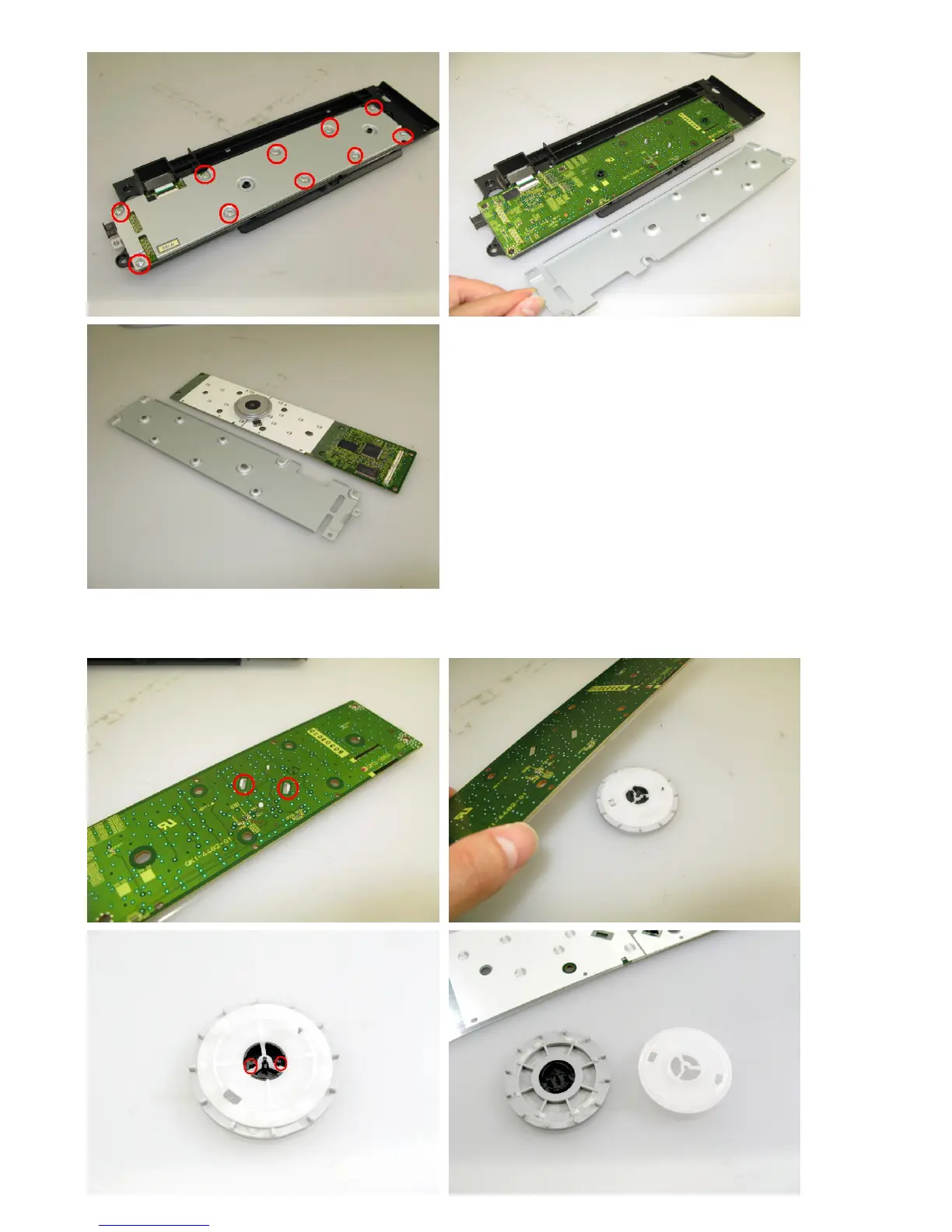

5) Remove the panel board (10 screws).
6) Remove the Easy-Scroll Wheel from the panel board.
<Be cautious not to touch the grease between the wheel base and the wheel.>
See 3-3. Adjustment / Settings, (3) Grease application.
22 / 44
