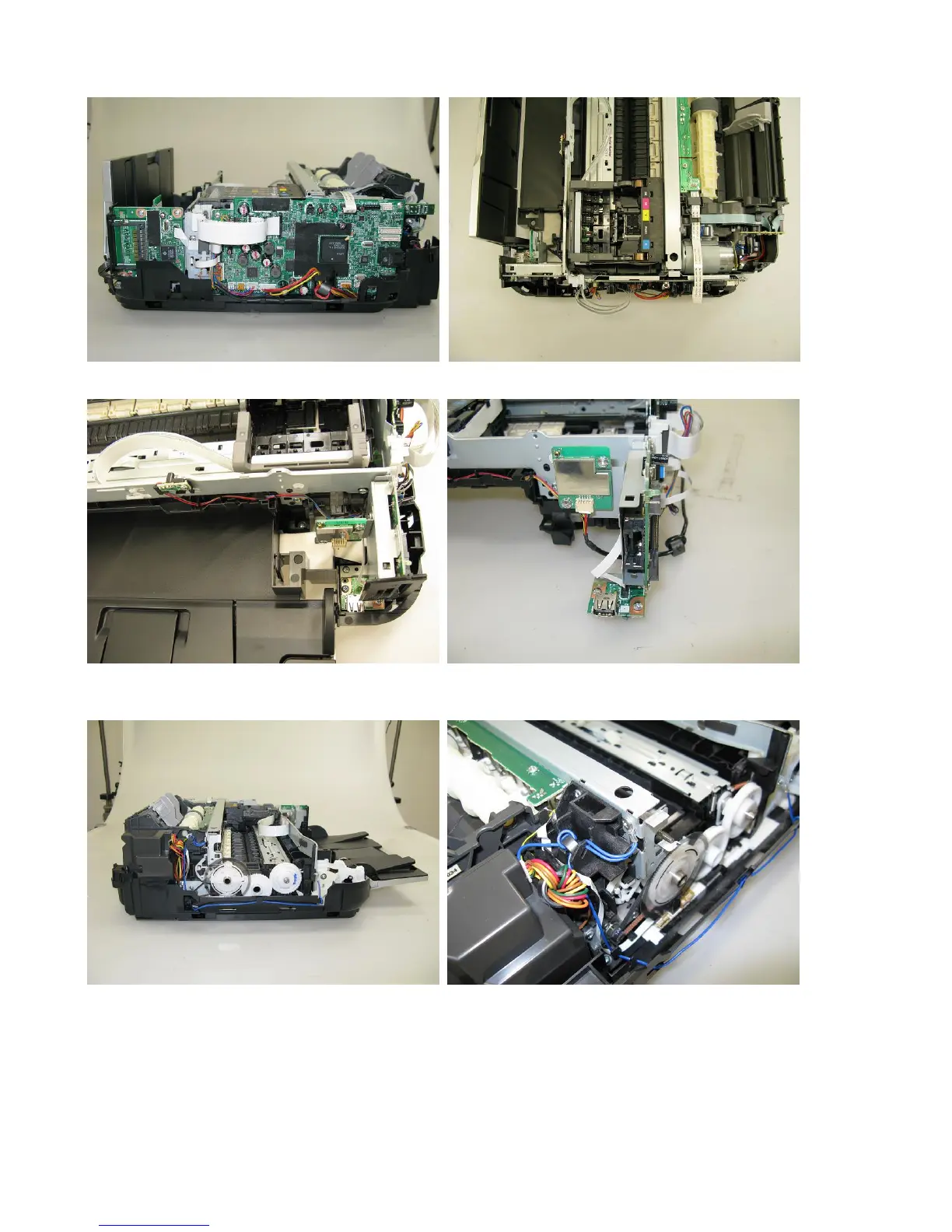

(3) Cable wiring and connection
1) Wiring on the right side
2) Wiring of the ink sensor cable and the WLAN harness
Bottom case and panel cover removed
3) Wiring on the left side. Hook the ground cable on the side of the bottom case.
