Canon mp628 - Page 26

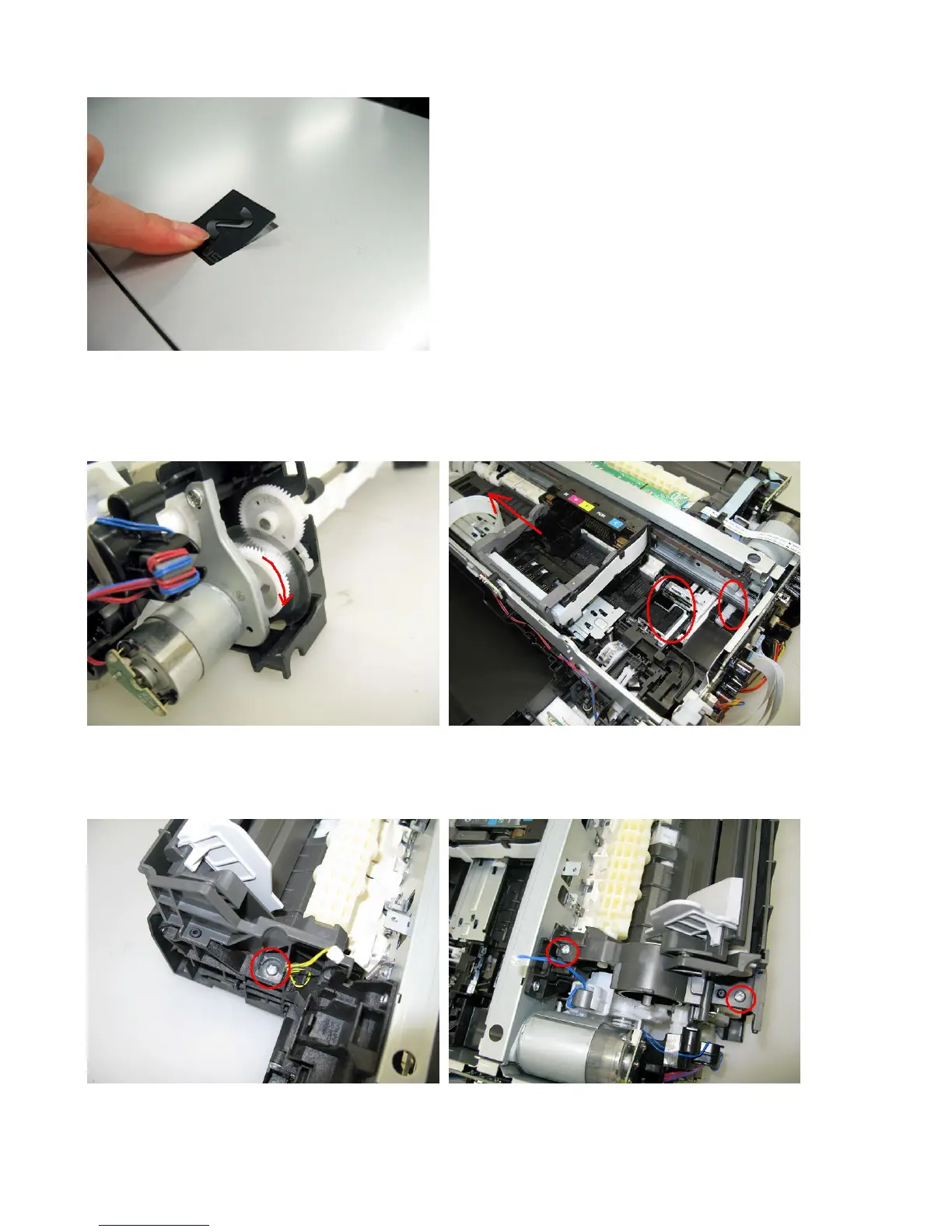

(4) Emblem removal
(5) Carriage unlocking
(6) ASF unit removal
Push the emblem bottom to remove from the double-sided adhesive tape.
1) Rotate the drive unit gear toward the back of the machine to unlock the carriage.
Slide the carriage to the left (the opposite of the home position).
1) Remove 1 screw from the left plate, and 2 screws from the right plate.
24 / 44
