Canon mp628 - Special Notes on Repair Servicing

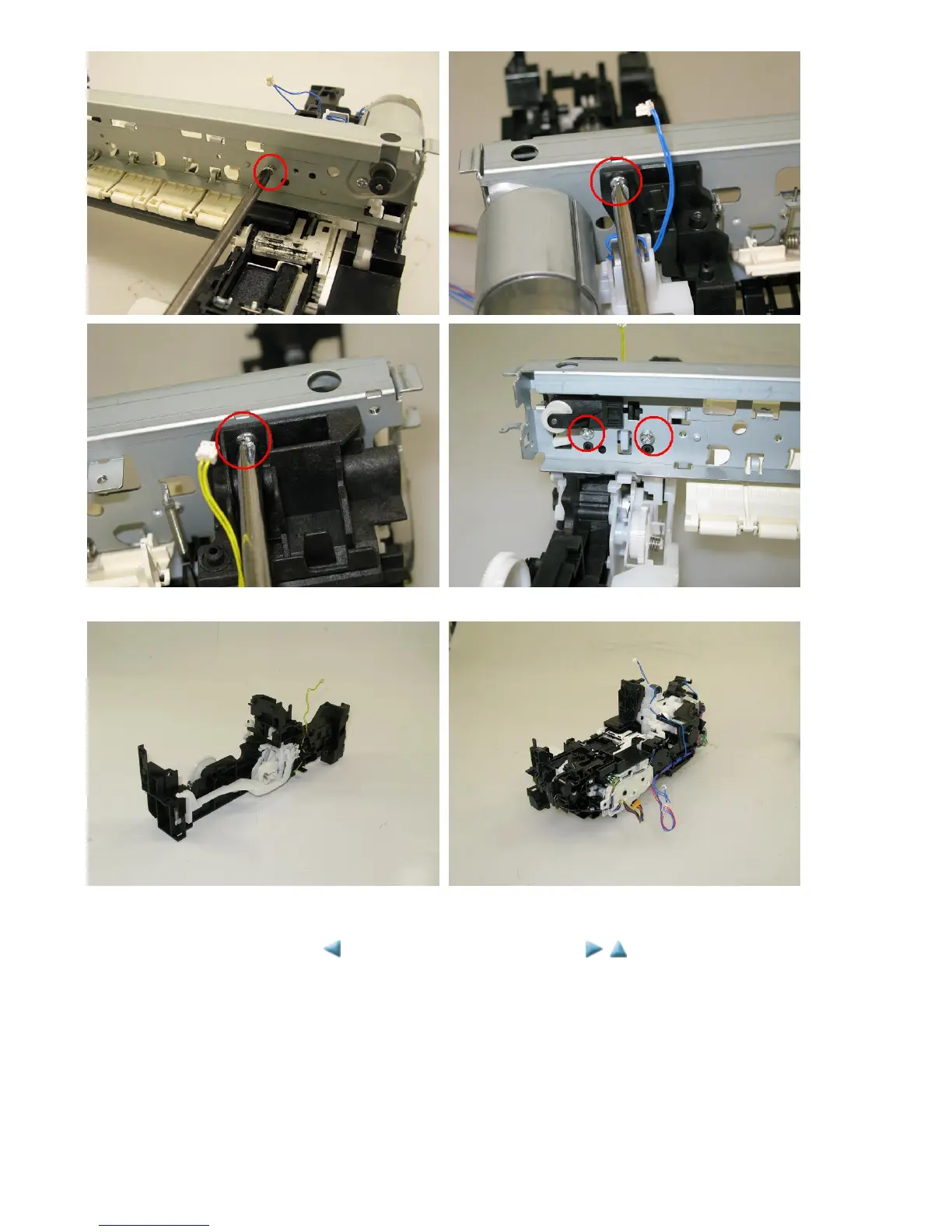

3) Remove the screws that fix the units to the main chassis (2 on the right, 3 on the left).
4) Separate the main chassis from the switch system unit and the purge drive system unit.
<3-2. Special Notes on Repair Servicing>
30 / 44
