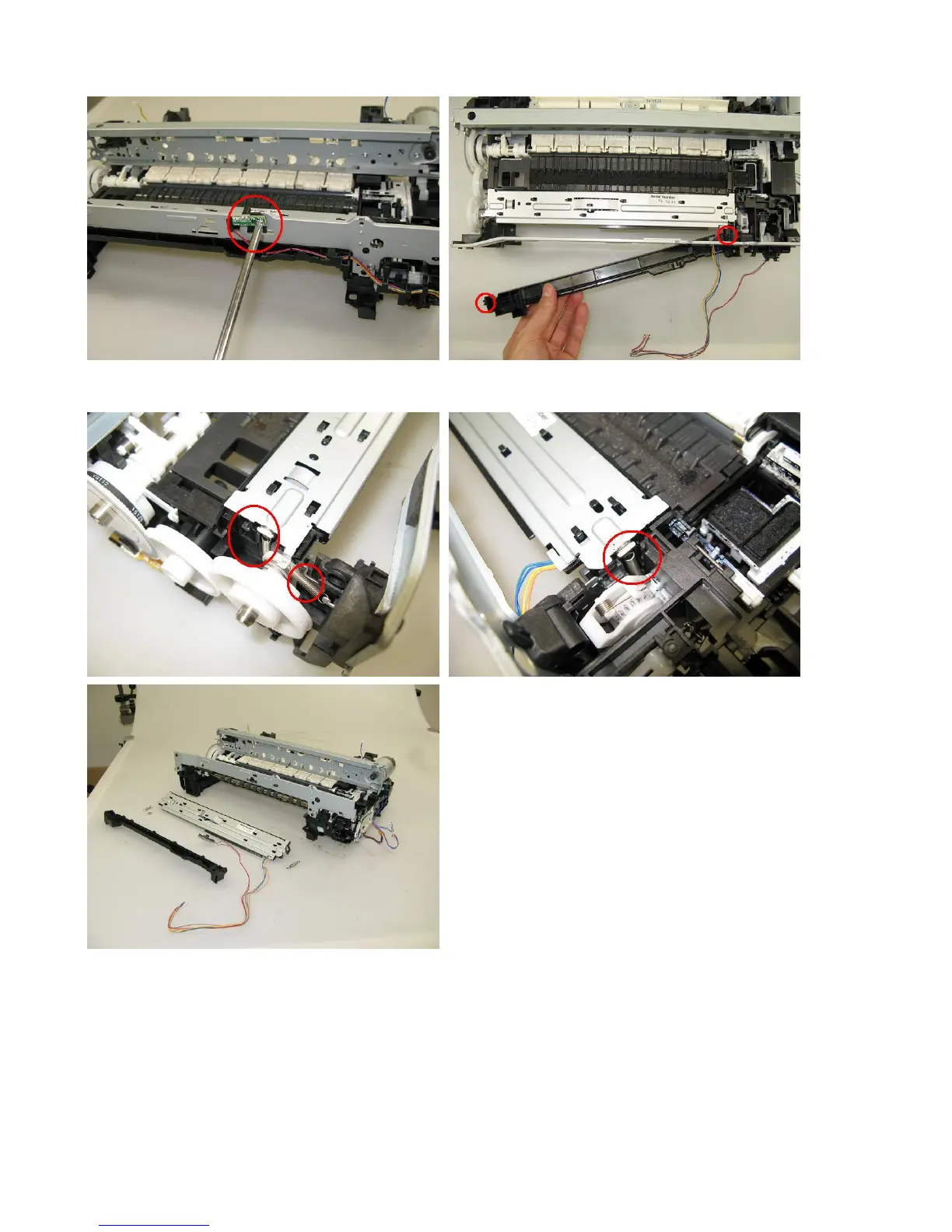

(8) Spur unit and platen unit removal
1) Remove the ink sensor and the middle front cover from the front chassis.
2) From the left and right sides of the spur unit, release the springs (2 on the left side, 1 on the right side). Then, slowly
pull the spur unit upward to remove it from the platen unit.
