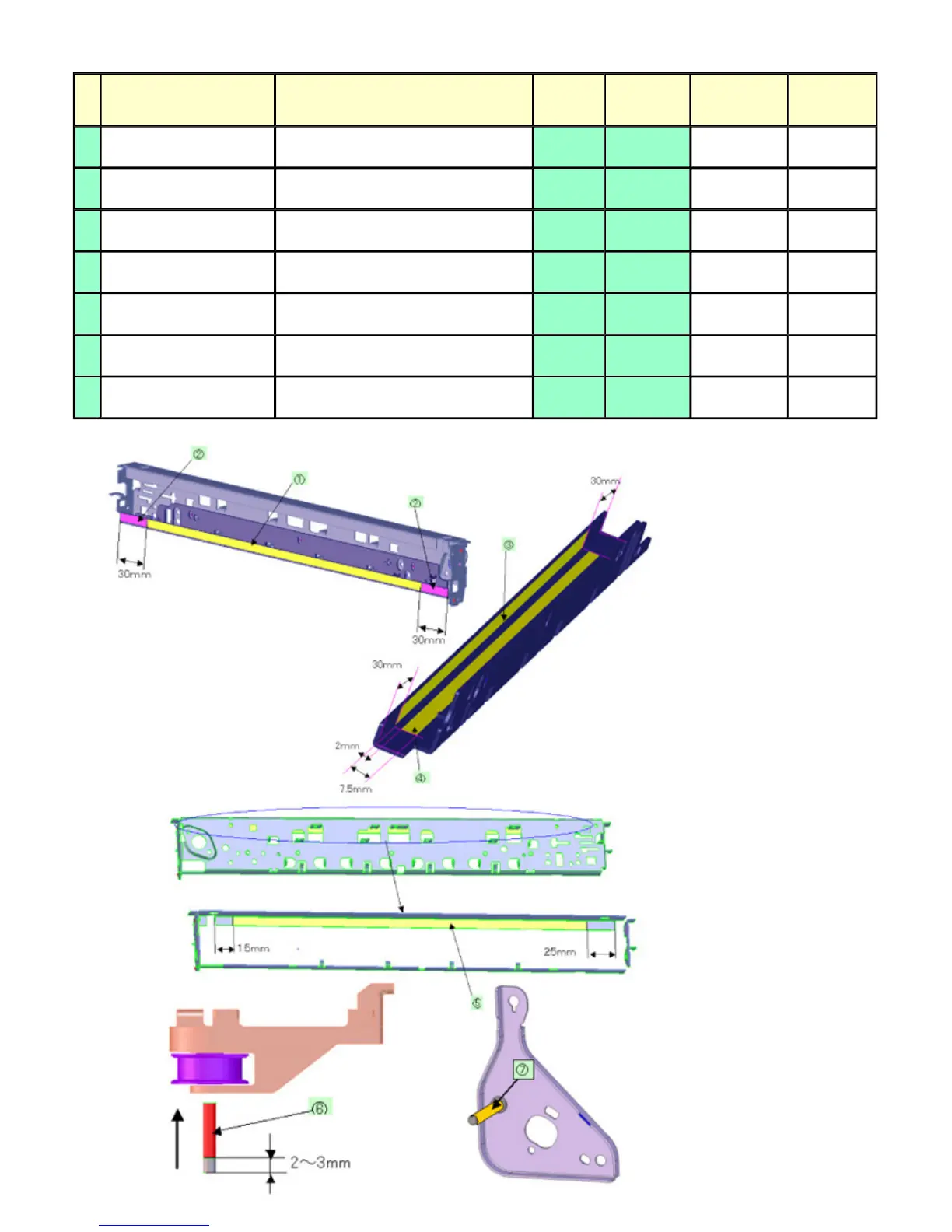

(3) Grease application
1) Printer unit
1 drop = 9 to 18 mg
No Part name Where to apply grease / oil
Drawing
No.
Grease
Grease
amount (mg)
Number of
drops x
locations
1 Carriage rail The surface where the carriage unit slides (1)
Floil
KG107A
270 to 330 ---
2 Carriage rail The surface where the carriage unit slides (2)
Floil
KG107A
18 to 36 1 x 2
3 Carriage rail The surface where the carriage unit slides (3)
Floil
KG107A
360 to 440 ---
4 Carriage rail The surface where the carriage unit slides (4)
Floil
KG107A
360 to 440 ---
5 Main chassis The surface where the carriage unit slides (5)
Floil
KG107A
230 to 290 ---
6 Parallel pin
The pin surface which contacts the idler
pulley hole
(6)
Floil
KG107A
9 to 18 1 x 1
7 APP code wheel gear shaft
APP code wheel gear sliding portion (the
entire surface)
(7)
Floil
KG107A
9 to 18 1 x 1
