I. EXTERNALS
A. External Covers

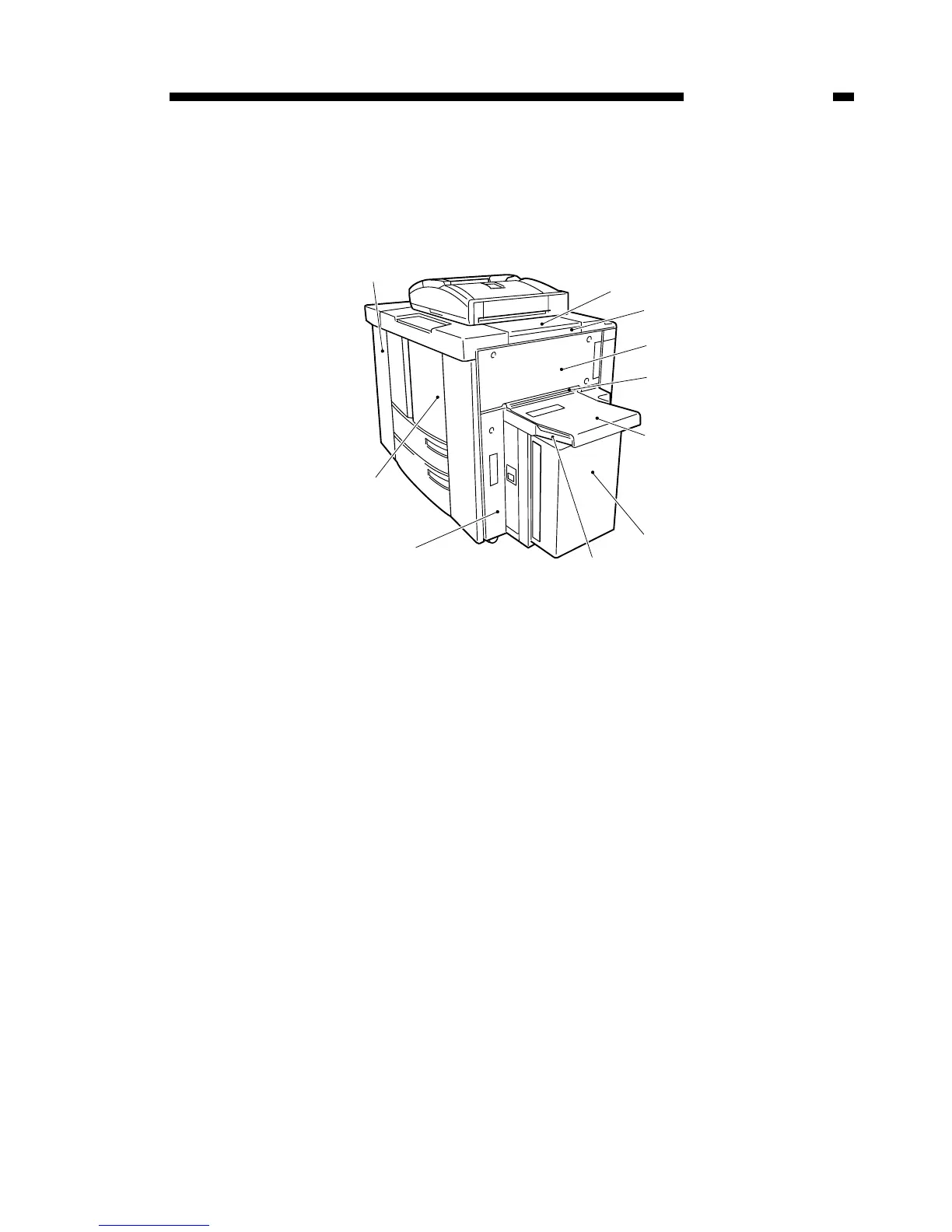

Figure 4-101
4. MECHANICAL SYSTEM
COPYRIGHT © 1996 CANON INC. CANON NP6085 REV.0 JULY 1996 PRINTED IN JAPAN (IMPRIME AU JAPON)
4-1
w
e
q
!0
i
o
u
y
t
r
q Front right door
w Front left door
e Hopper upper cover
r Hopper supply mouth cover
t Upper right cover (4)
y Upper left cover (2)
u Multifeeder cover
i Paper deck cover
o Multifeeder tray
!0 Front left cover (2)
