134

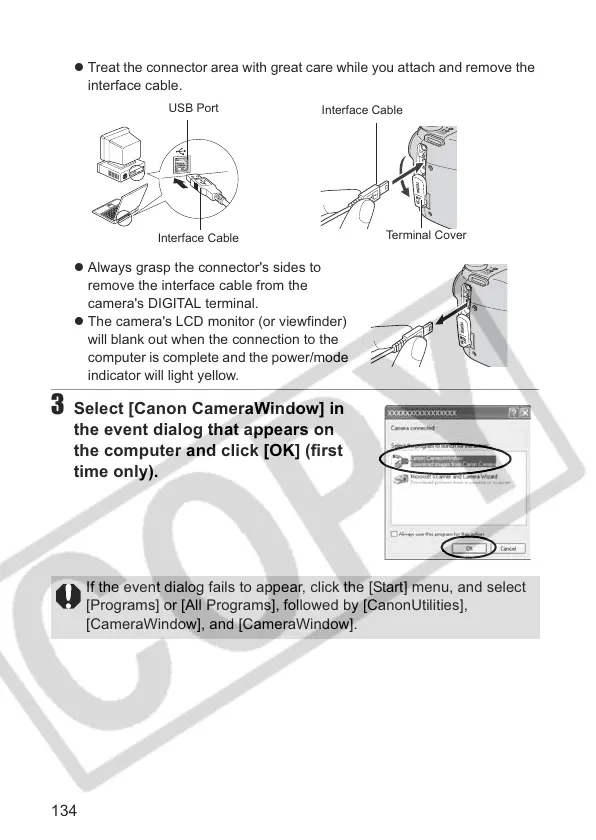

z Treat the connector area with great care while you attach and remove the
interface cable.
z Always grasp the connector's sides to
remove the interface cable from the
camera's DIGITAL terminal.
z The camera's LCD monitor (or viewfinder)
will blank out when the connection to the
computer is complete and the power/mode
indicator will light yellow.
3 Select [Canon CameraWindow] in
the event dialog that appears on
the computer and click [OK] (first
time only).
If the event dialog fails to appear, click the [Start] menu, and select
[Programs] or [All Programs], followed by [CanonUtilities],
[CameraWindow], and [CameraWindow].
Interface Cable
Terminal Cover
Interface Cable
USB Port
To Next Page
