Canon Powershot S2 IS

14

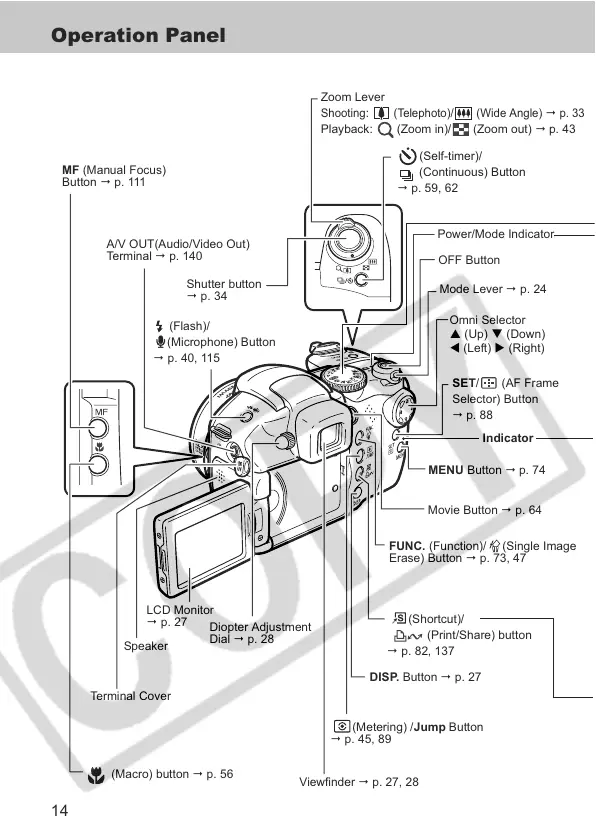

Operation Panel
Mode Lever  p. 24
Viewfinder  p. 27, 28
Zoom Lever
Shooting: (Telephoto)/ (Wide Angle)  p. 33
Playback: (Zoom in)/ (Zoom out)  p. 43
Shutter button
 p. 34
(Flash)/
(Microphone) Button
 p. 40, 115
(Self-timer)/
(Continuous) Button
 p. 59, 62
MF (Manual Focus)
Button  p. 111
(Macro) button  p. 56
Omni Selector
S (Up) T (Down)
W (Left) X (Right)
SET/(AF Frame
Selector) Button
 p. 88
FUNC. (Function)/ (Single Image
Erase) Button  p. 73, 47
(Metering) /Jump Button
 p. 45, 89
(Shortcut)/
(Print/Share) button
 p. 82, 137
DISP. Button  p. 27
A/V OUT(Audio/Video Out)
Terminal  p. 140
LCD Monitor
 p. 27
Movie Button  p. 64
OFF Button
Speaker
Terminal Cover
Power/Mode Indicator
MENU Button  p. 74
Diopter Adjustment
Dial  p. 28
Indicator
