Canon Powershot S2 IS

157
Appendix
10

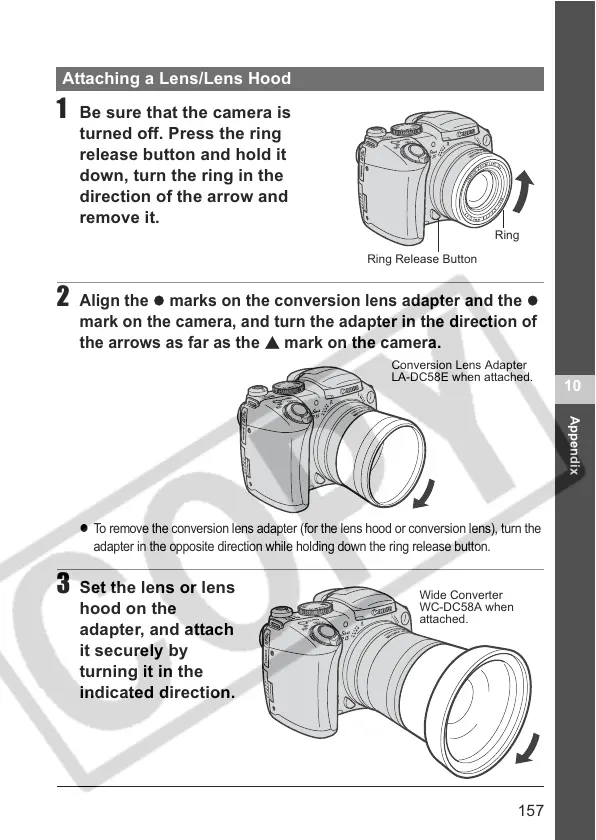

Attaching a Lens/Lens Hood
1 Be sure that the camera is
turned off. Press the ring
release button and hold it
down, turn the ring in the
direction of the arrow and
remove it.
2 Align the z marks on the conversion lens adapter and the z
mark on the camera, and turn the adapter in the direction of
the arrows as far as the
S mark on the camera.
z To remove the conversion lens adapter (for the lens hood or conversion lens), turn the
adapter in the opposite direction while holding down the ring release button.
3 Set the lens or lens
hood on the
adapter, and attach
it securely by
turning it in the
indicated direction.
Ring Release Button
Ring
Conversion Lens Adapter
LA-DC58E when attached.
Wide Converter
WC-DC58A when
attached.
