101
Playback/Erasing
You can play back images on a television with the supplied AV
cable.

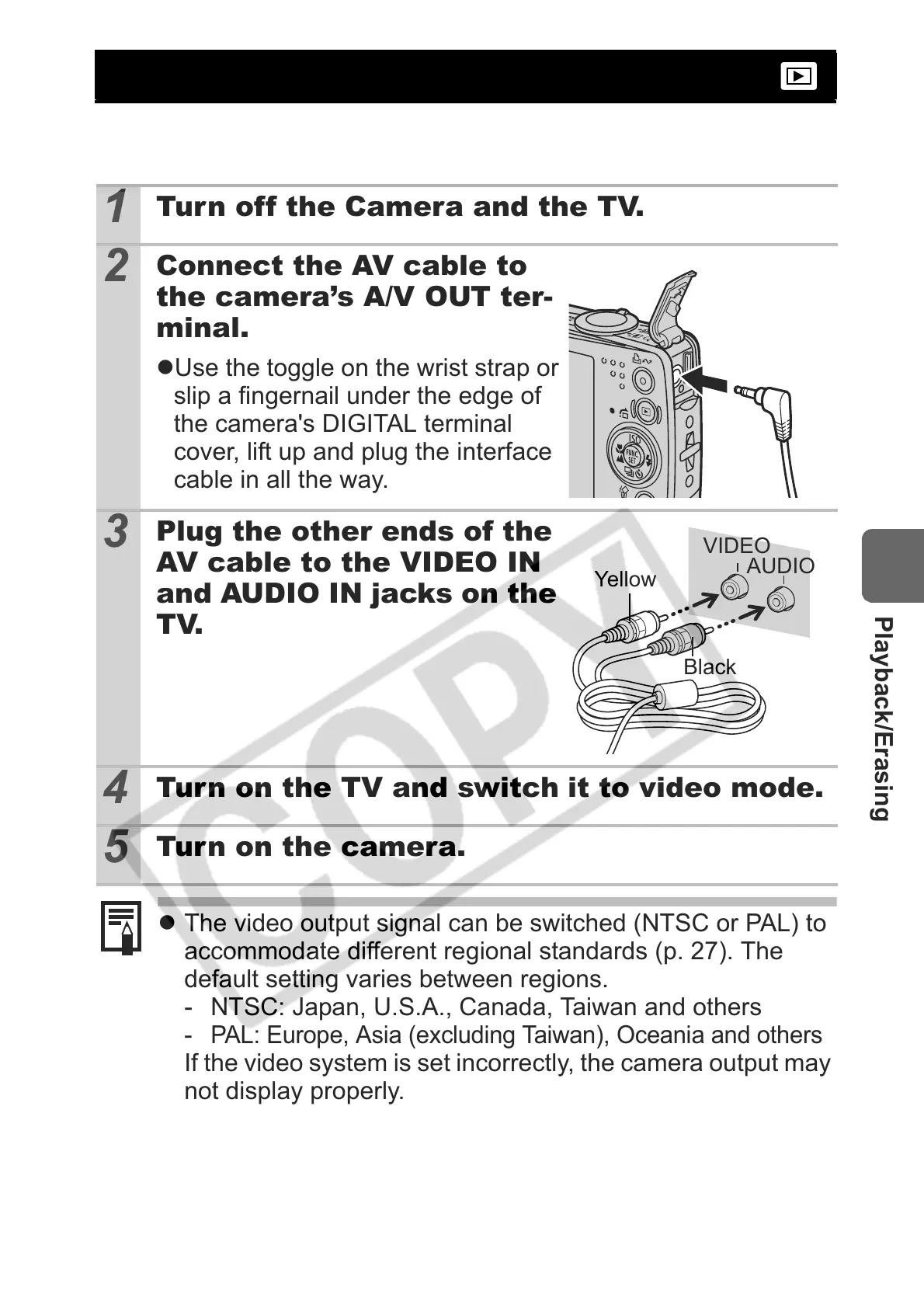

Viewing Images on a TV set
1
Turn off the Camera and the TV.
2
Connect the AV cable to
the camera’s A/V OUT ter-
minal.
zUse the toggle on the wrist strap or
slip a fingernail under the edge of
the camera's DIGITAL terminal
cover, lift up and plug the interface
cable in all the way.
3
Plug the other ends of the
AV cable to the VIDEO IN
and AUDIO IN jacks on the
TV.
4
Turn on the TV and switch it to video mode.
5
Turn on the camera.
z The video output signal can be switched (NTSC or PAL) to
accommodate different regional standards (p. 27). The
default setting varies between regions.
- NTSC: Japan, U.S.A., Canada, Taiwan and others
- PAL: Europe, Asia (excluding Taiwan), Oceania and others
If the video system is set incorrectly, the camera output may
not display properly.
z You can also use the TV as the display in the shooting
mode.
VIDEO
AUDIO
Yellow
Black
