Procedure

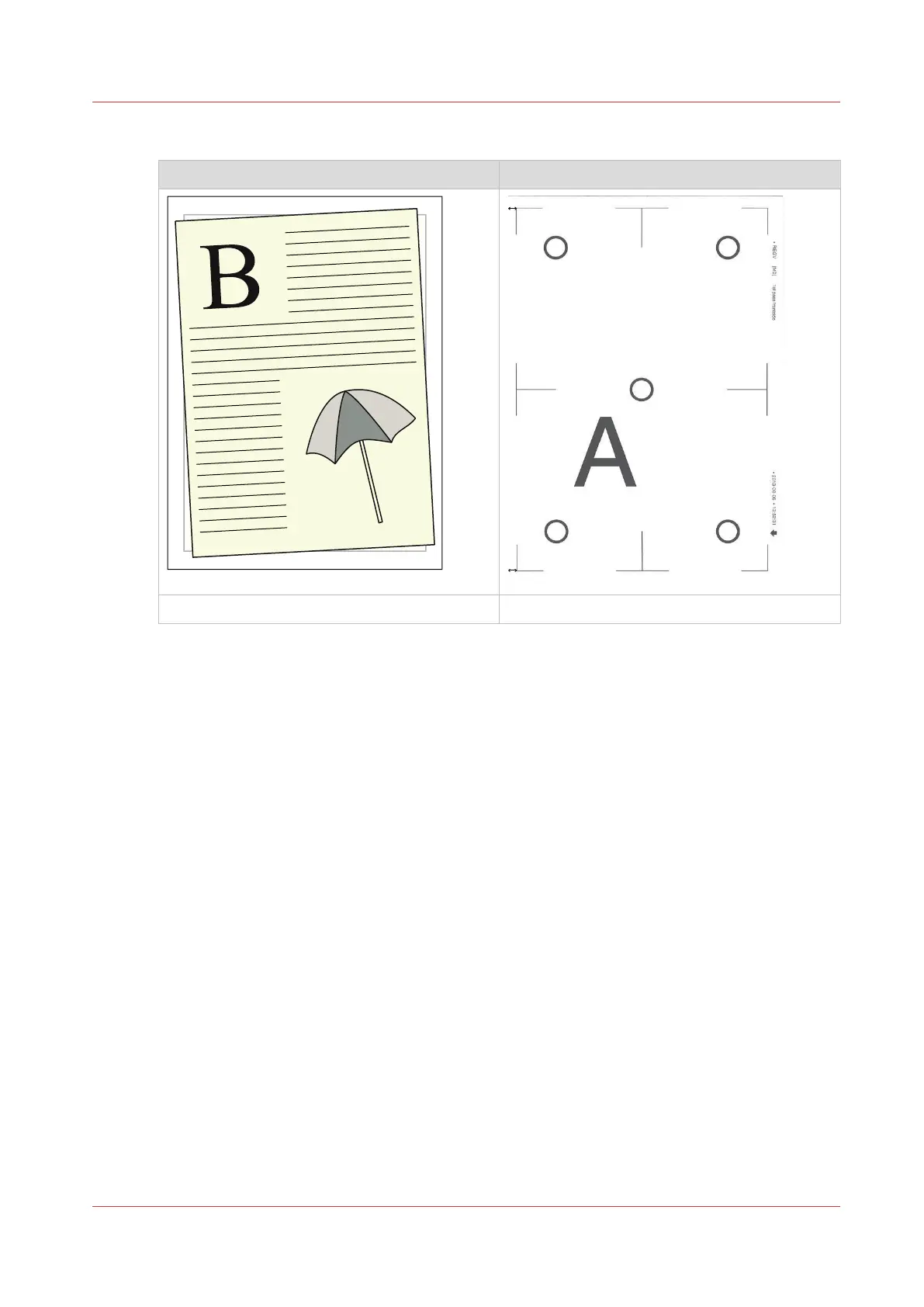

Job Verification chart
<-- Feed direction
Media Registration
Procedure
1.
On the verification chart, determine if the image on the back side is skewed or the image on the
front side.
If the image on the back side is skewed, change the back side.
If the image on the front side is skewed, change the front side.
2.
On the verification chart, use an accurate ruler to measure the distance between:
• The leading edge of the sheet and the top-left corner. a in the figure above.
For example, the distance is 10.3 mm (0.40").
• The leading edge of the sheet and the bottom-left corner. b in the figure above.
For example, the distance is 9.5 mm (0.37").
3.
Determine the difference between the value measured at the bottom and the value measured at
the top. b - a. This is the skew (rotation).
In the example, the measured skew is -0.8 mm (-0.03").
4.
Enter the value according to the table below.
5.
Confirm the changed value.
6.
Print the verification chart again and verify if the media registration is optimal.
If the media registration is not optimal, change the value or use another setting depending on
how the registration looks.
