Canon VB-R11 User Manual

196

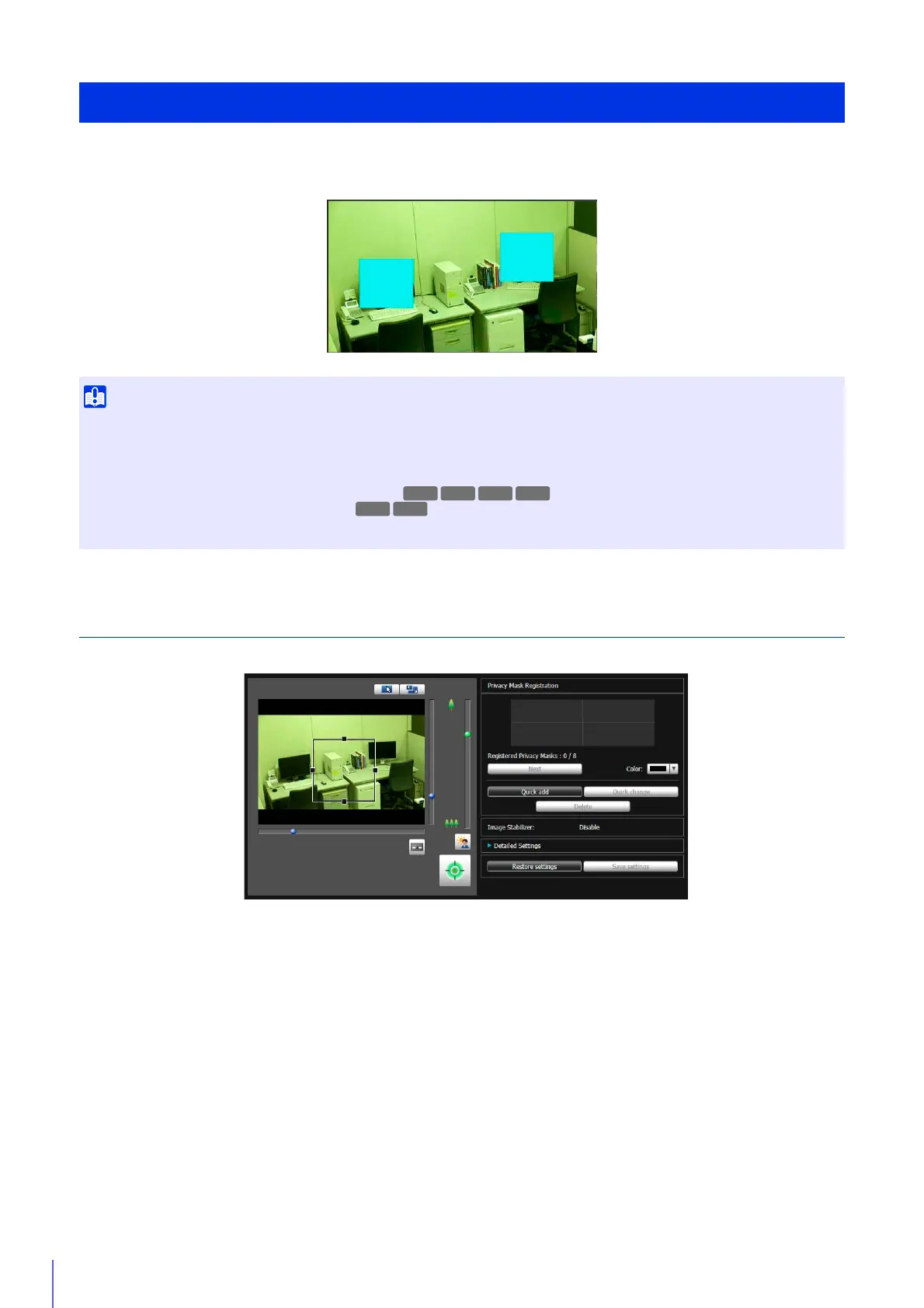

This tool masks specified areas of the camera video. You can check the camera video and set up to 8 privacy masks.
When the camera is panned, tilted, or zoomed, the privacy mask areas follow the camera video.
Register Privacy Masks
Use the mouse to position and size the privacy mask areas, then save the settings to the camera.
Drag the preview frame displayed in the video display area to the position you want to mask.
Change the size of the preview frame by dragging the handles (■) positioned on its four sides.
Privacy Mask Setting Tool
Important
• Privacy masks are applied to all video transmitted from the camera (live video, uploaded video, recorded video and video recorded to
a memory card).
• Privacy masks are not available in the following situations.
– While the camera is launched after being turned on.
– For camera video in the Camera Angle Setting Tool
– While a panorama image is being created.
• Intelligent Function detection also works in the privacy mask areas. Subject movement may be visible.
M641
M640
M741
M740
R11
R10
Settings Screen for the Privacy Mask Setting Tool
1
If you have not yet obtained the camera control privileges, click the [Obtain/Release Camera Control Privileges]
button and obtain the control privileges (P. 147).
2
Set the size and position for the privacy mask in the video display area.

Canon VB-R11 Specifications

General

Camera Type	Network Camera
Effective Pixels	Approx. 2.07 megapixels
Minimum Illumination	0.5 lx (Color, 1/30 sec, F2.0, AGC ON), 0.1 lx (B/W, 1/30 sec, F2.0, AGC ON)
Shutter Speed	1/30 to 1/10, 000 sec
Resolution	1920 x 1080 (Full HD)
Frame Rate	30 fps (1920 x 1080)
Sensor Type	CMOS
Image Sensor	1/3" CMOS
Aperture	F1.2 to F2.8
Angle of View	Horizontal: 90.1°, Vertical: 50.6°, Diagonal: 108.3°
Video Compression	H.264, M-JPEG
Audio Compression	G.711, G.726
Network Interface	10Base-T/100Base-TX
Protocols	TCP/IP, UDP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, RTP/RTCP, RTSP, SNMP
Power Source	PoE (IEEE 802.3af)
Operating Temperature	-10°C to 50°C
Day/Night	Auto
Power Supply	PoE (IEEE 802.3af)
Operating Humidity	20% to 80% (non-condensing)
Lens	Varifocal
