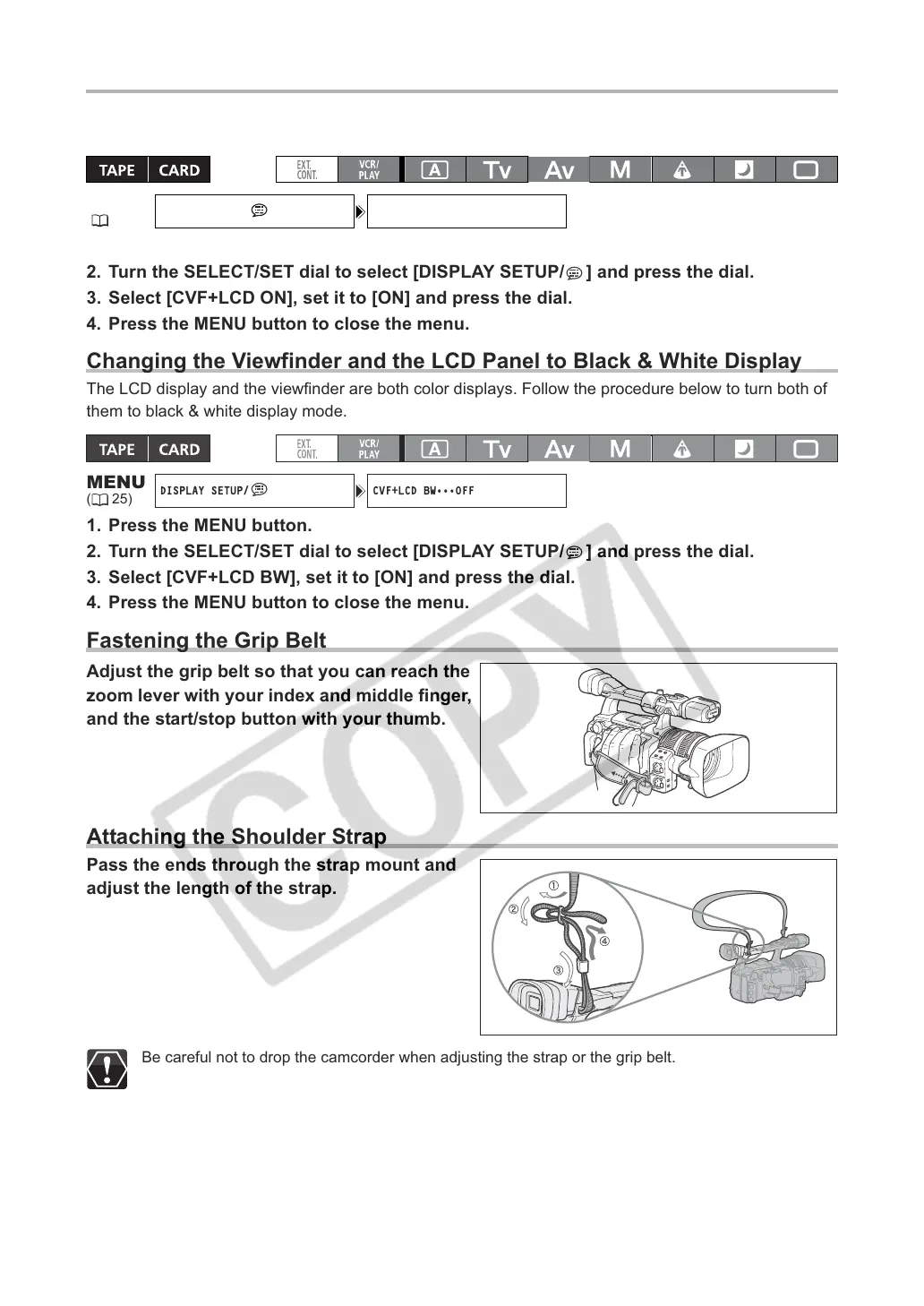

Using the Viewfinder and the LCD Panel Simultaneously
By default, the viewfinder display is turned off while you use the LCD panel. Follow the procedure below
to use both of them simultaneously.
1. Press the MENU button.
2. Turn the SELECT/SET dial to select [DISPLAY SETUP/ ] and press the dial.
3. Select [CVF+LCD ON], set it to [ON] and press the dial.
4. Press the MENU button to close the menu.
Changing the Viewfinder and the LCD Panel to Black & White Display
The LCD display and the viewfinder are both color displays. Follow the procedure below to turn both of
them to black & white display mode.
1. Press the MENU button.
2. Turn the SELECT/SET dial to select [DISPLAY SETUP/ ] and press the dial.
3. Select [CVF+LCD BW], set it to [ON] and press the dial.
4. Press the MENU button to close the menu.
Fastening the Grip Belt
Adjust the grip belt so that you can reach the
zoom lever with your index and middle finger,
and the start/stop button with your thumb.
Attaching the Shoulder Strap
Pass the ends through the strap mount and
adjust the length of the strap.
Be careful not to drop the camcorder when adjusting the strap or the grip belt.
MENU
(25)
DISPLAY SETUP/ CVF+LCD ON•••OFF
MENU
(25)
DISPLAY SETUP/ CVF+LCD BW•••OFF

Canon XH A1 Specifications

General

Built-in display	Yes
Display diagonal	2.8 \
Display resolution	207000 pixels
Filter size	72 mm
Optical zoom	20 x
Image stabilizer	No
Focal length range	4.5 - 90 mm
Interchangeable lens	-
Total megapixels	1.67 MP
Camcorder tape type	HDV
Internal storage capacity	0 GB
Focus	Auto: Instant AF; Manual: Independent
I/O ports	-Headphone -Microphone -DV(out/in) -Analogue-in -AV -LANC
Viewfinder resolution	269000 pixels
Viewfinder screen size	0.57 \
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Product color	Black
Battery type	BP-970G
Battery life (max)	7 h
Camera shutter speed	1/16000 s
Camcorder type	Shoulder camcorder
Minimum illumination	0.4 lx
Maximum video resolution	1440 x 1080 pixels

Weight and Dimensions

Depth	350 mm
Width	163 mm
Height	189 mm
Weight	2330 g
