Assembly instruction speaker stand Reference 55.2 Center

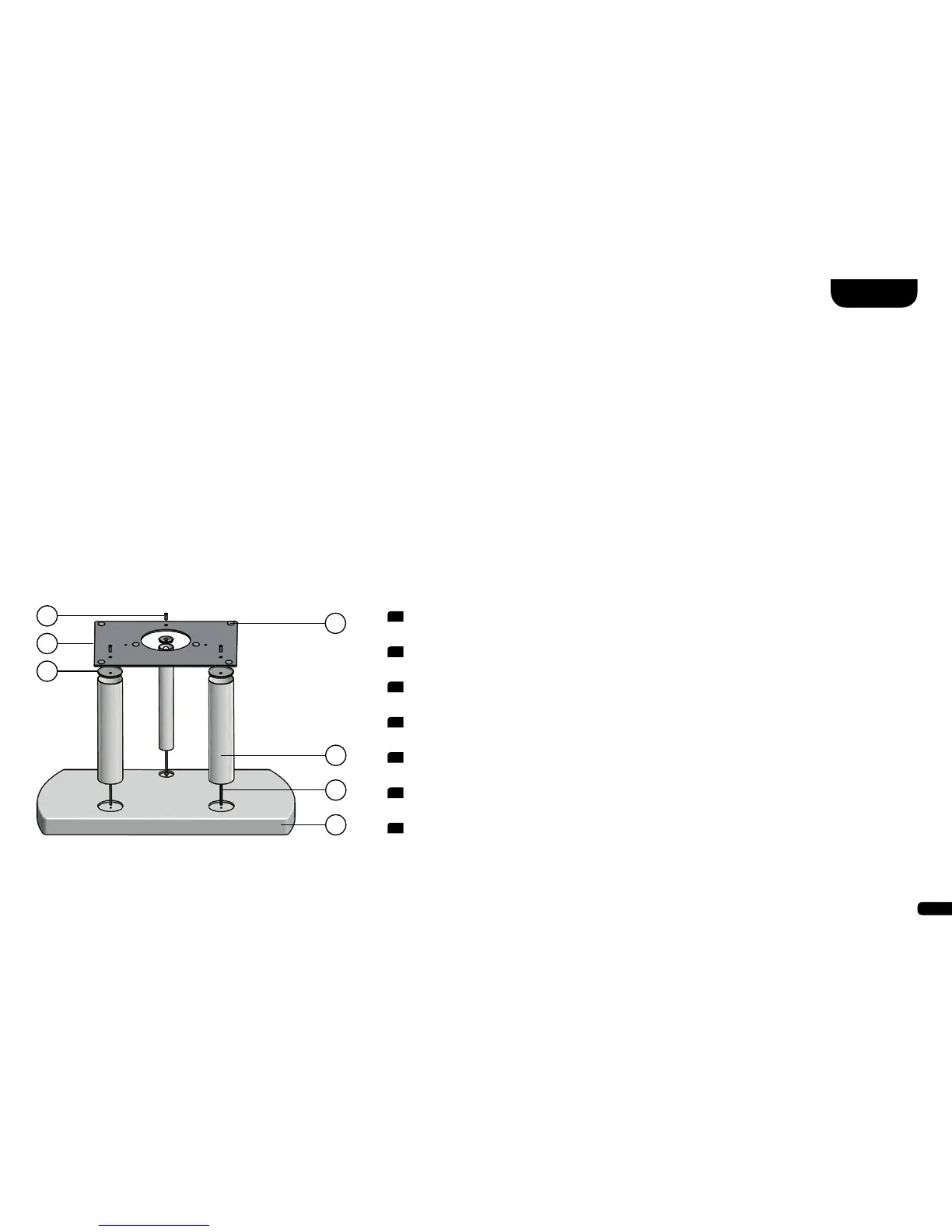

1. Screw the threaded rods into the base plate
2. Place the pipes as pictured
3. Place the endcaps as pictured
4. Place support plate as pictured
5. Screw support plate and treaded rods together
6. Affix rubber pads
1
- Threaded bush
2
- Support plate
3
- Endcaps
4
- Pipe
5
- Threaded rod
6
- Base plate
7
- Rubber pad
7
1
6
2
4
3
5
