Canton Movie User Manual

20
ENG

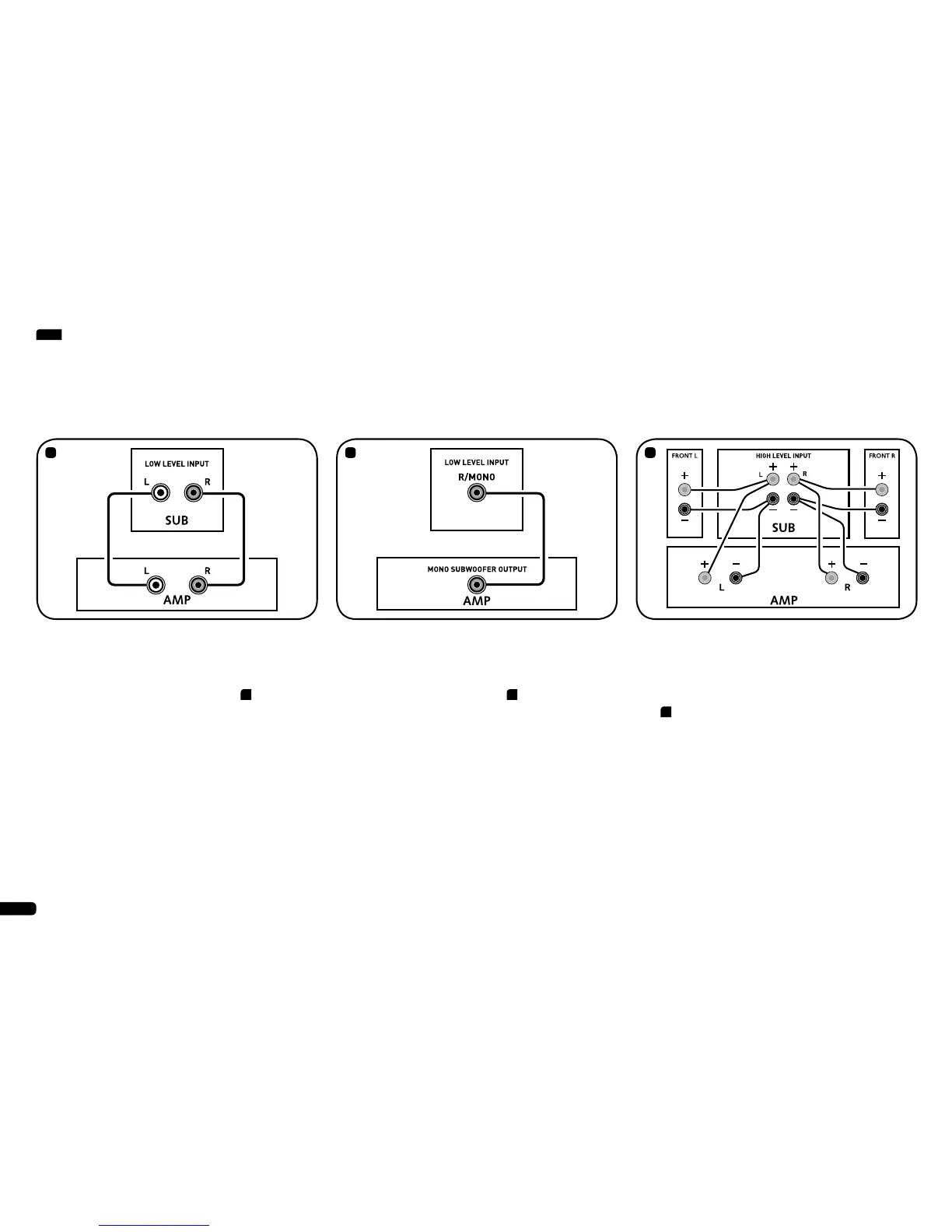

Connection Subwoofer
1. Amplifier or AV receiver with “Pre-Out”
or special stereo subwoofer outlet (LFE):
connect via Low Level Input (ill.
1
)
Cable: standard cinch cable
3. Amplifier or AV receiver without special
subwoofer outlet: connect with loudspeaker
outlets on amplifier via High Level Input
(ill.
3
)
Cable: standard speaker cable
Ensure correct polarity:
red = plus, black = minus
Note:
The Low Level and High Level Inputs may
not be used at the same time!
31
SUB
2
Please ensure that all electrical components are switched off before connecting your subwoofer. Depending on the make and model of your
amplifier or receiver, there are various connection options for your Canton subwoofer.
2. Amplifier or AV receiver with mono sub-
woofer outlet socket: connect via
Mono Low Level Input (ill.
2
)
Cable: double insulated cinch cable

Canton Movie Specifications

General

Disc types supported	No
Optical disc player type	Not included
Quantity	1
Number of woofer drivers	4
Mid-range driver diameter	110 mm
Apple docking compatibility	-
Mid-range driver diameter (imperial)	4 \
Video formats supported	Not supported
RMS rated power	330 W
Audio output channels	5.1 channels
Front speaker type	2-way
Front speakers RMS power	100 W
Front speaker frequency range	45 - 30000 Hz
Front speaker tweeter diameter	1 \
Front speaker dimensions (WxDxH)	140 x 100 x 220 mm
Front speaker crossover frequency	3900 Hz
Center speaker type	2.5-way
Center speaker weight	3500 g
Center speaker RMS power	130 W
Center speaker dimensions (WxDxH)	430 x 100 x 140 mm
Center speaker crossover frequency	3500 Hz
Number of satellite speakers	2
Tweeter diameter	25 mm
Number of tweeter drivers	3
Subwoofer type	Active subwoofer
Subwoofer weight	9000 g
Subwoofer frequency range	25 - 200 Hz
Subwoofer dimensions (WxDxH)	270 x 290 x 335 mm
Subwoofer crossover frequencies	55 - 200 Hz
Subwoofer driver diameter (imperial)	9 \
Product color	Silver
HDMI in	0
