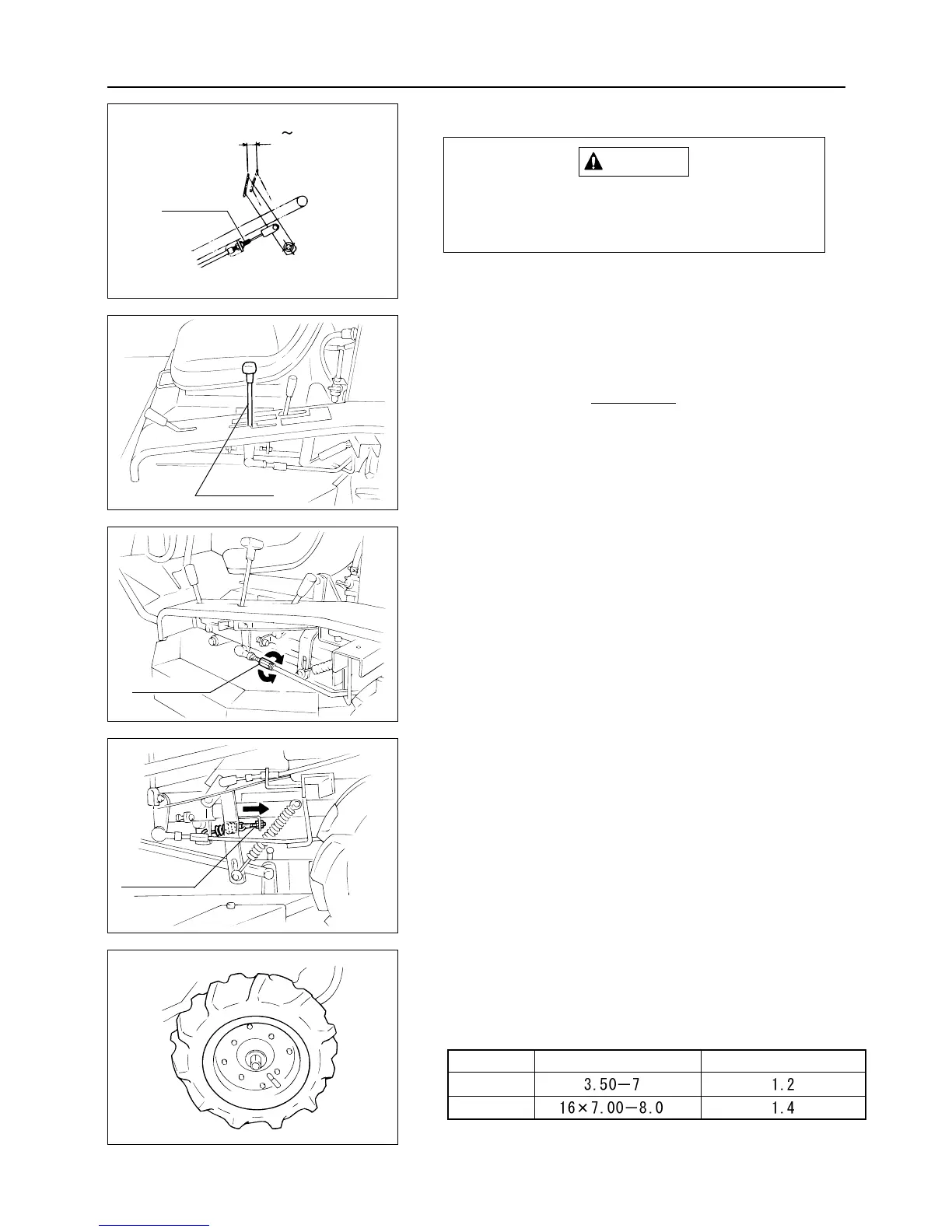

7.8.5 HST Lever
Adjustment is not needed unless the machine
is overhauled. When "Neutral" position of HST
lever is not correctly adjusted, the machine will
slightly move forward or backward.
1. Move HST lever to "Neutral" position.
2. Adjust by turning the turnbuckle of HST lever.
If machine moves forward slightly :
Turn the turnbuckle in A direction.
If machine moves backward slightly :
Turn the turnbuckle in B direction.
NOTE
When HST lever returns to "Neutral" while driving :
Remove seat, move tension bolt at the foot of
HST lever in direction of arrow and adjust the
lever movement.
– 42 –
7
MAINTENANCE
7.8.4 Brake Pedal
If brake pedal play increases, immediately
make the following adjustment. Poor brake
adjustment may cause accidents.
Adjust the brake pedal play with the wire adjust nut in such a
way that when the brake pedal is depressed slightly, the play
is 15 to 20 mm at the end.
CAUTION
7.8.6 Tire Pressure
1. Check the air pressure of the front and rear tires. Adjust if
required.
Tire size Air pressure (kg/cm
2
)
Front wheel
Rear wheel
Turnbuckle
B
Adjust nut
15
20mm
Tension bolt
HST lever
A
