Maintenance
-54-
5

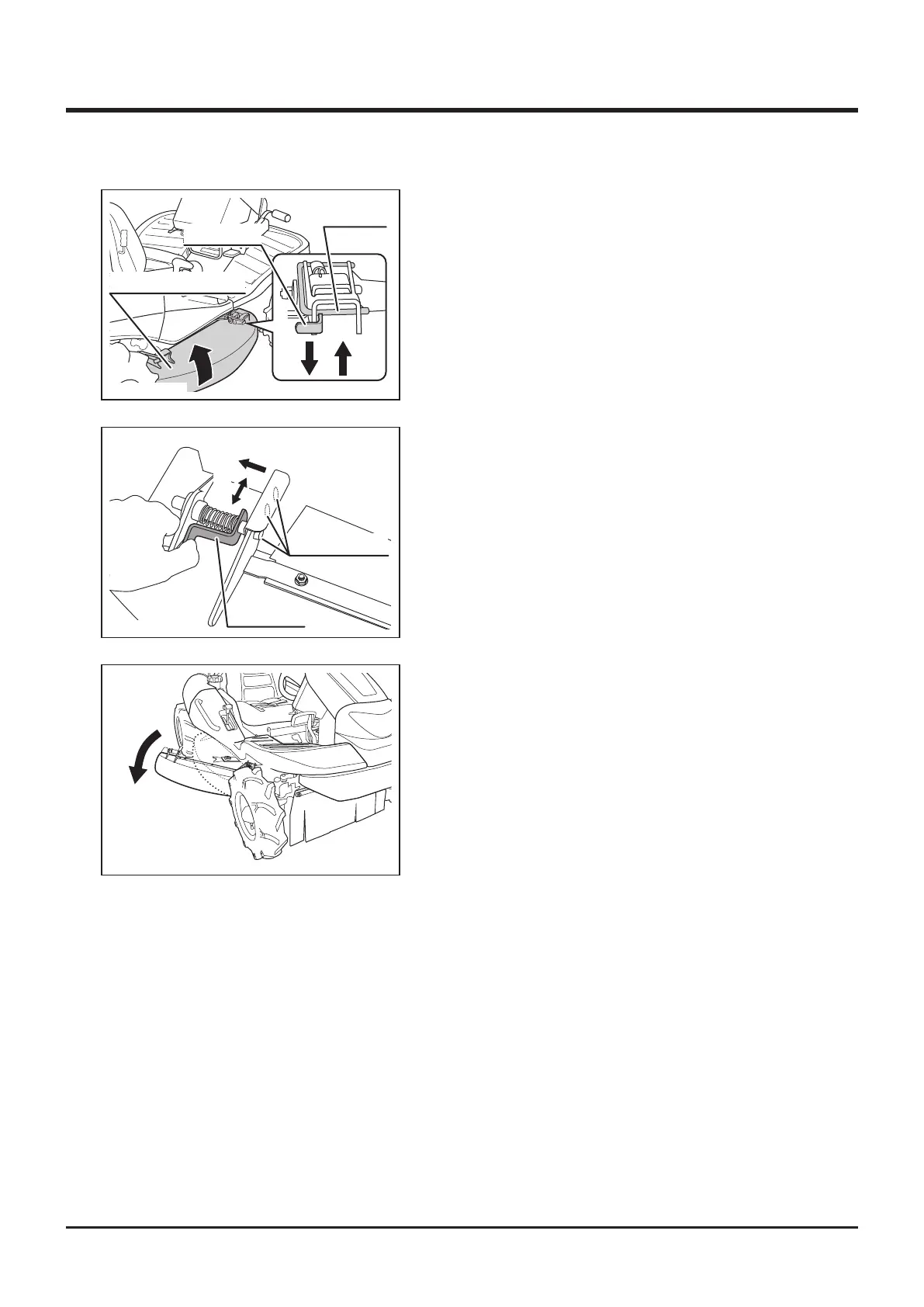

1. Push lock pin to unlock shield.
2. Pull up lock lever and move shield up or
down to one of three positions.
3. Press down lock lever to lock shield. Lock pin
will also return to lock position automatically.
Flipping up shield
5335M-0505-080E
5335M-0505-070E
Cutting Blade Shield
Lock Pin
Lock Lever
5335M-0505-090E
Lock Lever
Lock Positions
A
B
Opening shield to the side
1. Squeeze lock lever as shown (A).
2. Keep lock lever squeezed and move shield
to one of three lock positions (B).
3. Release lock lever at the selected lock
position so that the pin on lock lever
positively ts into the hole at lock position.
To Next Page
